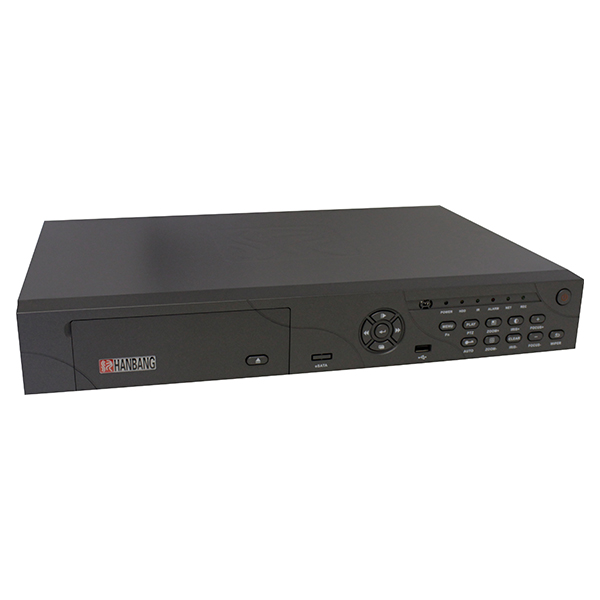

Hanbang 8/16CH 960H/D1 Standalone DVR

8/16 channel 960H/FD1 video input 1.5U DVR
Support 2 HDDs, 2 eSATA, HDD Group, HDD R/W Control, Max 8T Each
8/16 full channel realtime playback
Support Icon Interface, User Friendly & Easy-Operate
Support Snapshot, Record Lock, Record Cutting, AVI Backup
Quick Backup when Playback
Support 3G Network Access
Max 8 Network Accessing Users
Support Eliminating Bad Disk, HDD Record Storage Group, HDD R/W Control
Support HDMI/VGA/BNC/SPOT Simultaneous Output
Support PTZ, Manual Alarm, Alarm In/Out
Support CMS, Web View and Mobile View
IR Remote Extension Cord

Model: 7216X3
Housing: 1.5U
Operation System Embedded LINUX

Video:
Compression: H.264
Input: 16*BNC
Ouput: HDMI+VGA+CVBS
Dual Stream: Support

Audio:
Compression: G.771A
Input: 2*RCA
Ouput: 1*RCA
Bidirectional Talk: 3.5mm MIC Input Interface

Alarm:
Input: 4
Output: 1

Preview:
Resolution: FD1: PAL(704×576), NTSC(704×480)/ 960H: PAL(928×576), NTSC(928×480)/ VGA/HDMI:1920*1080
Display: 1ch/ 4ch/ 8ch/ 9ch/ 12ch/ 16ch
Sequence: Yes
Privacy Masking: 4 zones Maximum, On DVR

Recording:
Resolution: 16ch FD1/CIF/960H/Q960H
Recording Mode: Manual, Schedule, Motion, Alarm
Recording Quality: CBR, VBR
Recording Interval: Pre-record: 5-30 sec, Post-record: 0-180 sec

Playback:
Channel: 16ch
Search Mode: Time,Date,Record Mode
Privacy Masking: 4 zones Maximum

Network:
Connection Way: Support 3G
Remote Operation: WEB ( IE, Chrome, Firefox, Safari)
Email: Test and send
Mobile: Support (IPhone, Andorid, Ipad)
Backup: USB devices & Network download
HDD: 2 HDD (Max support 4TB each)

External Interface:
USB Interface: 2
Network Interface:
RJ-45 10/100M/1000M/ adaptive Ethernet Interface
Auxiliary Interface:
RS-485(FDX),1 IR Extension Cord

General:
Power supply: DC 12V
Power Consumption: 40W
Working temperature: -10°C~+55°C
Size: 440mm x 70.10mm x 301.54mm
