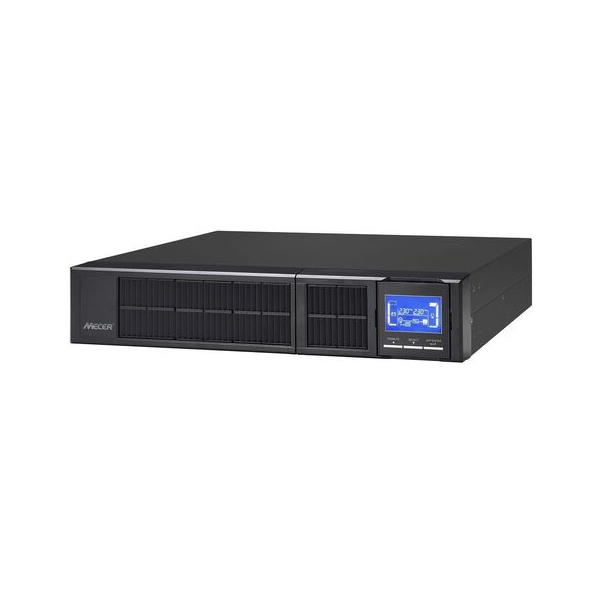

MECER WINNER PRO 1KVA ONLINE UPS RACK MOUNT

**PLEASE NOTE: 12 MONTH COMPONENT WARRANTY, 6 MONTH BATTERY WARRANTY**

Specifications:
-Capacity: 1000VA/800W
-Phase: Single phase with ground

Input:
-Input Voltage Range: 55-150 VAC or 110-300 VAC (Based on load at 50%); 85-140VAC or 160-280VAC (Based on load at 100%)
-Nominal Voltage: 100/110/115/120/127VAC or 200/208/220/230/240VAC
-Frequency Range: 40Hz ~70 Hz
-Power Factor: >= 0.99 @ Nominal Voltage (100% load)

Output:
-Voltage Regulation: ± 1%
-Output Voltage: 100/110/115/120/127VAC or 200/208/220/230/240VAC
-Frequency Range(Batt mode): 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
-Transfer Time: AC Mode to Battery Mode: Zero
-Transfer Time: Inverter to Bypass: 4 ms (Typical)
-Transfer Time: Waveform(Batt.Mode): Pure Sine Wave
-Current Crest Ratio: 3::1
-Harmonic Distortion: <= 3% THD (Linear Load); <= 6% THD (Non-linear Load)
-Frequency Range(Synchronized Range): 47~53 Hz or 57~63 Hz

Efficiency:
-Battery Mode: 0.83
-AC Mode: 0.88

Battery:
-Standard Model, Battery Type: 12 V / 9 AH
-Standard Model, Charging current: 1A
-Standard Model, Charging voltage: 27.4 VDC ± 1%
-Standard Model, Numbers: 2
-Standard Model, Typical Recharge time: 4 hours recover to 90% capacity

Indicators:
-LCD: Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators

Alarm:
-Battery Mode: sounding every 4secs
-Low Battery: Sounding every second
-Overload: sounding twice every second
-Fault: continuously sounding

Enviornment:
-Operating Humidity: 20~90% RH @ 0- 40°C (non-condensing)
-Noise Level: Less than 50dB @ 1 Meter

Physical Specs:
-Standard Model, Dimensions: 310 x 438 x 88[2U]
-Standard Model, Weight: 12kg
