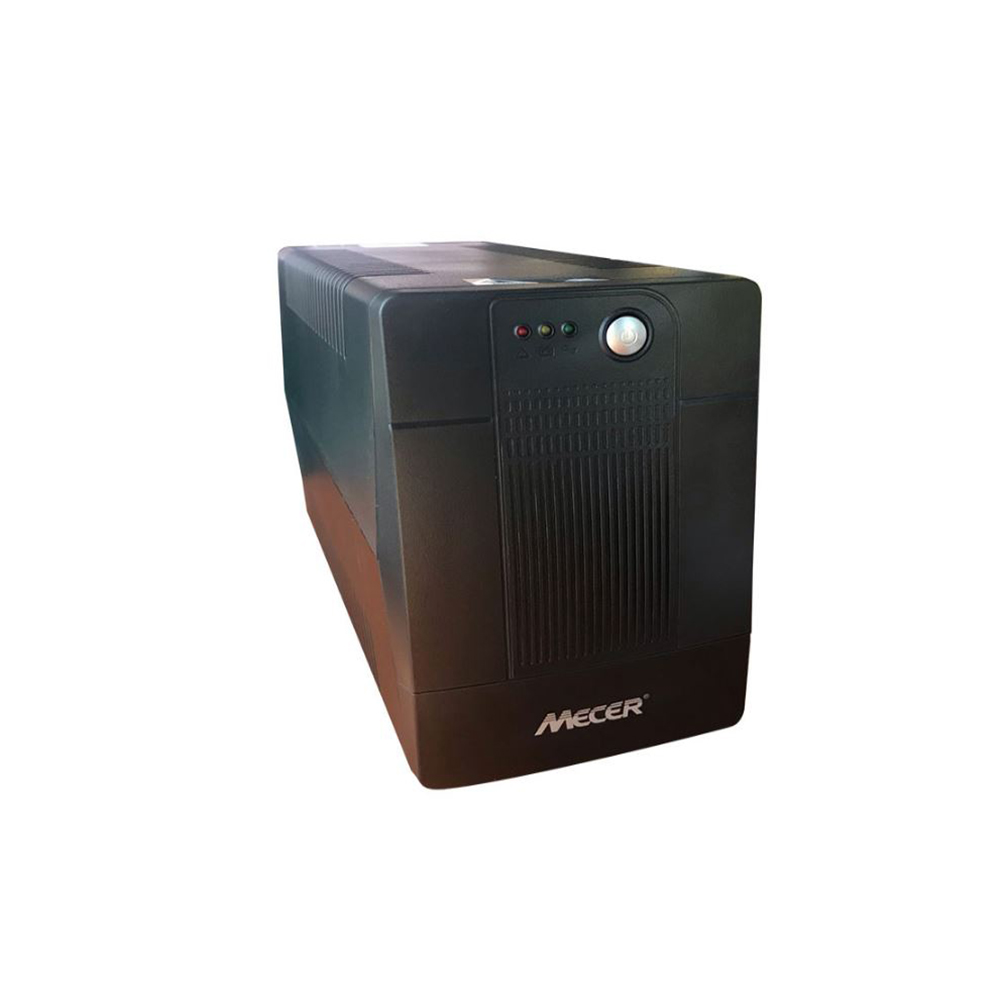

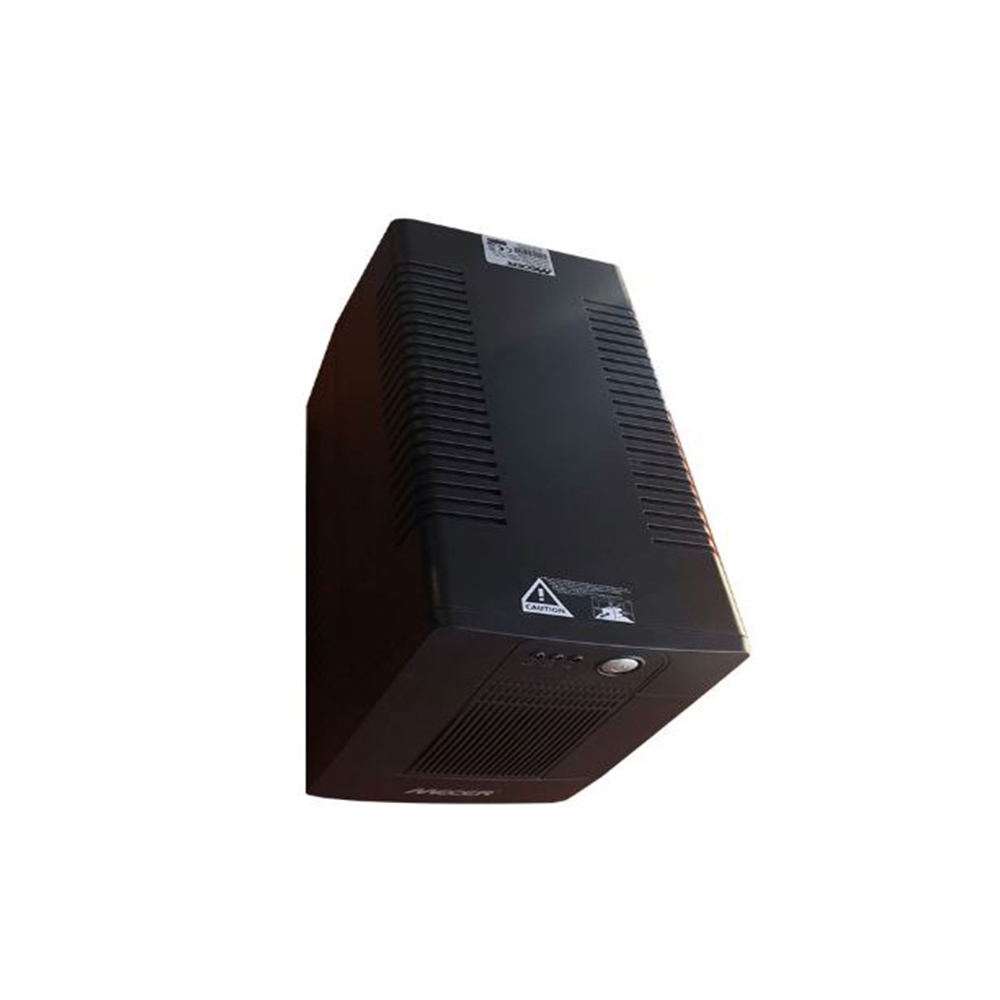

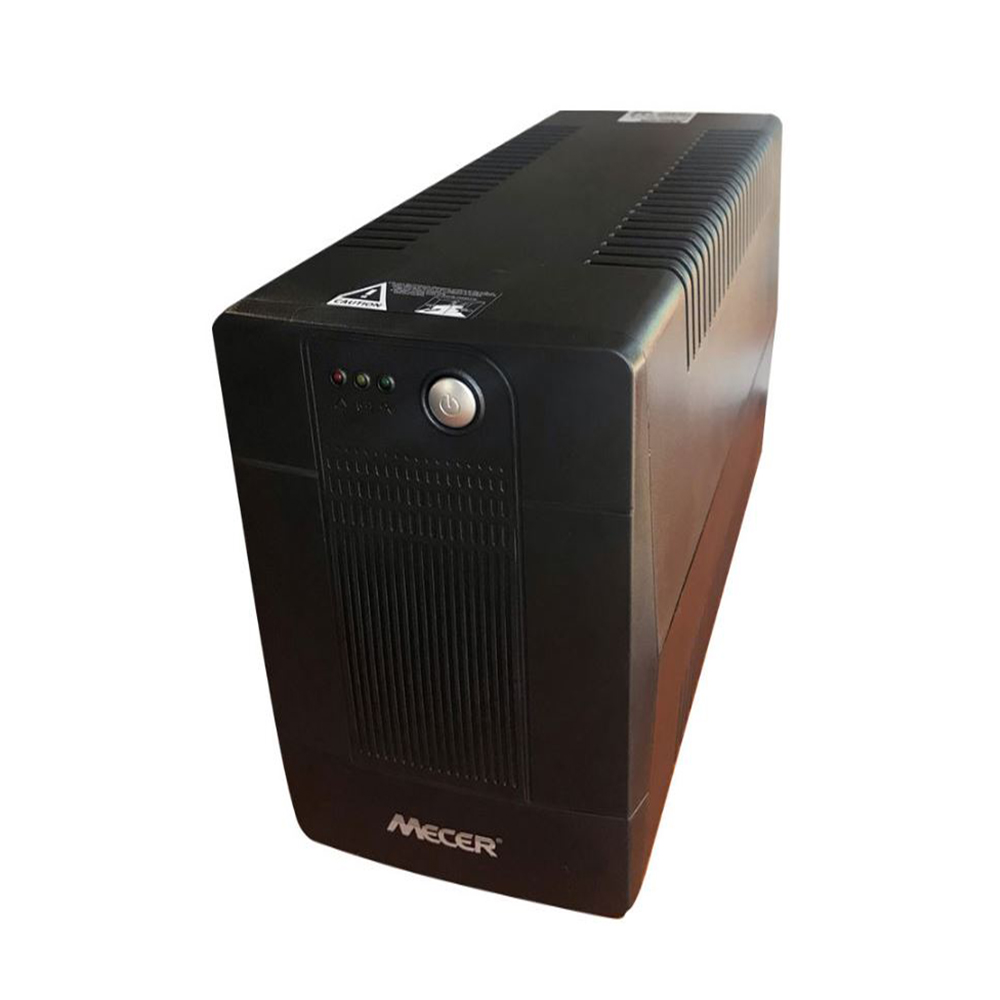

MECER 1000VA/600W LINE INTERACTIVE UPS-BK

Mecer 1000VA offline / line interactive UPS with AVR simulated sine wave, monitoring software with built-in surge protection and USB communication port.

**PLEASE NOTE: 12 MONTH COMPONENT WARRANTY, 6 MONTH BATTERY WARRANTY**

Features:
-Micro-processor control guarantees high reliability
-Boost and buck AVR for voltage stabilization
-Auto restart while AC is recovering
-Simulated sine wave
-Off-mode charging
-Cold start function

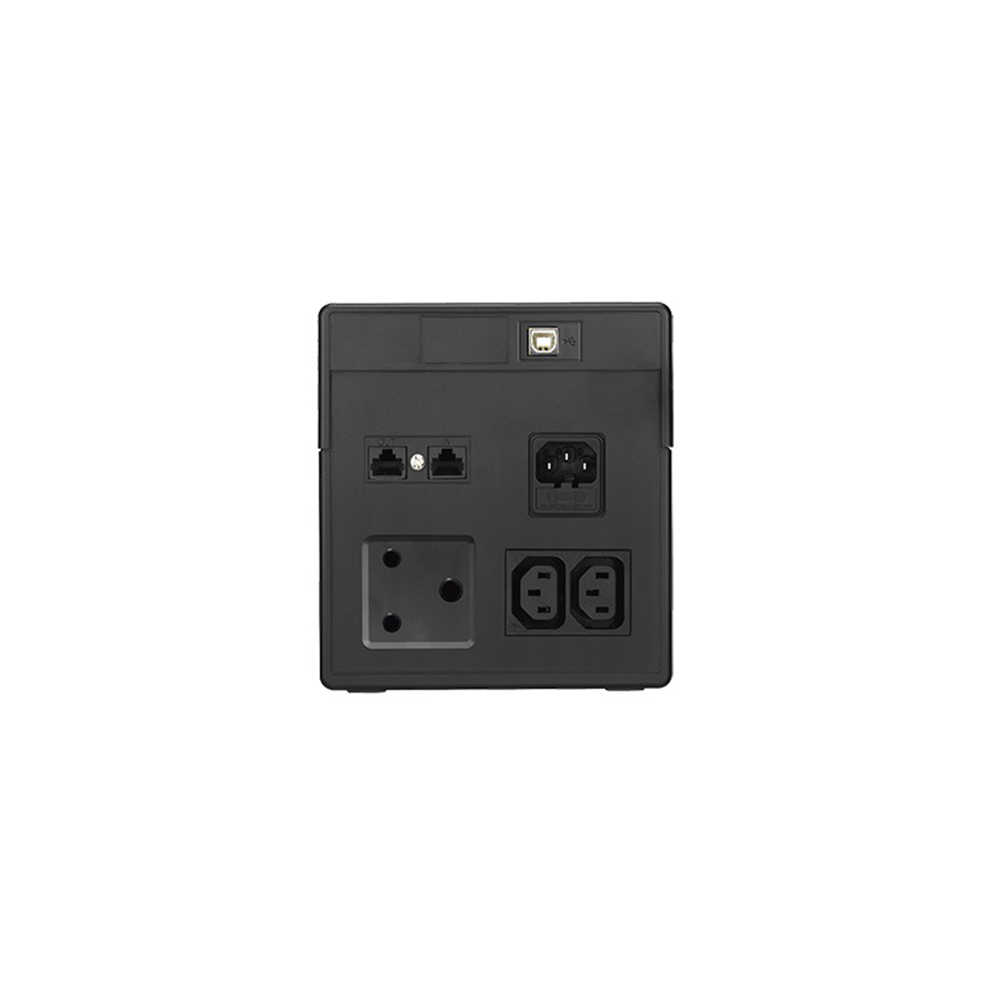

-USB communication port and RJ11/RJ45 protection
-Overload, discharge and overcharge protection

Specifications:
-Capacity: 1000VA / 600W
Input:
-Voltage: 110/120 VAC or 220/230/240 VAC
-Voltage range: 81-145 VAC / 162-290 VAC
-Frequency Range: 60/50Hz (auto sensing)
Output:
-AC Voltage Regulation: ±10%
-Frequency Range: 60/50Hz ±1Hz
-Transfer Time: Typical 2-6ms, 10ms max
-Waveform: Simulated Sine Wave
Battery:
-Battery Type/Number: 12V/7A x 2
-Typical Recharge Time: 4-6hrs recover to 90% capacity
Indicators:
-AC Mode: Green Lighting
-Battery Mode:
Yellow Flashing
-Fault: Red Lighting
Protection:
-Full protection: overload, discharge, overcharge
Alarm:
-Battery mode: sounding every 10sc
-Low Battery: sounding every 1sc
-Overload: sounding every 0.5sc
-Battery Replacement: sounding every 2sc
-Fault: continuously sounding
Operating evironment:
-Humidity: 09-%RH @ 0-40z°
-Noise level: Less than 40db

**Note:
-UPS is not designed to provide continuous power, this unit merely allows to finalise work on PC/laptop and safely shutdown.

In the Box:
-UPS unit x 1
-USB cable (UPS to PC) x 1
-M to F extensions power cable IEC C14/13 x 2
