UGREEN - UG-HDMI-90514



UG 90514 HDMI2.0 1IN-4OUT 4K AMP. SPLTTR

Description

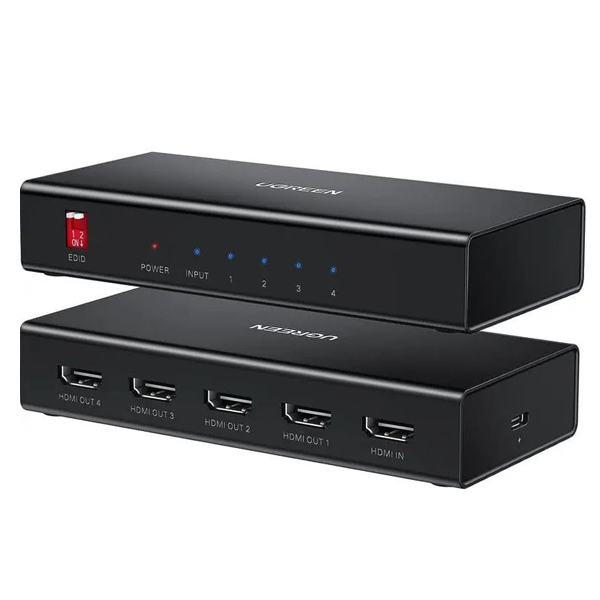

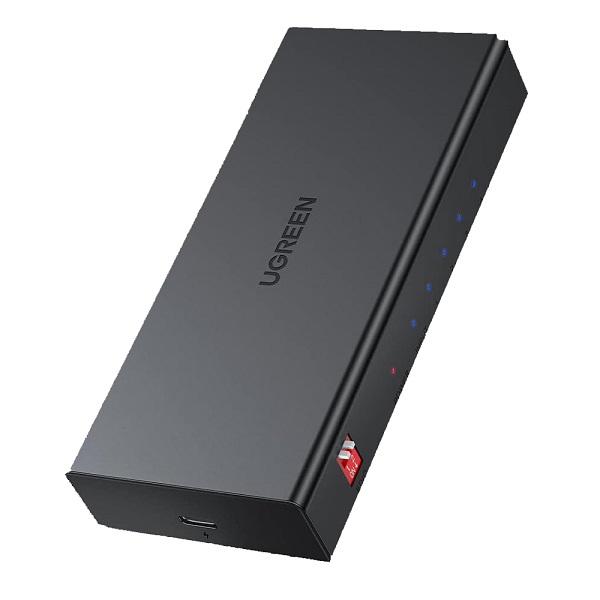

UGreen 90514 HDMI 2.0 1 IN-4 Out 4-Port Amplified HDMI Splitter With High-Performance Chip and EDID Control & Supports up to 4K@60Hz Resolution - Black Colour


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/catalogue-peripherals-kvm-splitters-and-switches-hdmi-spltter-and-switch/ug-hdmi-90514

UGreen 90514 HDMI 2.0 1-In 4-Out 4Port Amplified HDMI Splitter With High-Performance Chip And EDID Control And Supports Up To 4K@60Hz Resolution - Black Colour

Features:
-Sync Audio and Video
-Plug and Play and Hot swap
-Display 4 screens simultaneously
-Widely compatible with HDMI devices
-High-Performance chip and EDID Switch
-Stable video transmission and better performance
-Supports 3D, 1080P, 4K@60Hz, HDCP 2.2/1.4 and HDR
-Support 1080P long distance transmission within 40m HDMI cable

Specifications:
-Model No: CM570-90514
-HDMI Version 2.0
-Input: 1x HDMI
-Output: 4x HDMI
-Material: ABS+PET
-Output Resolution: 4K@60Hz, 4K@30Hz, 1080P@60Hz
-Audio Format: DTS-HD, Dolby-TrueHD, LPCM7.1, DTS, Dolby-AC3, DSD, HBR Audio
-Video Format: RGB 8/10/12 bpc, 8/10/12 bpc, YCbCr 4:4:4/4:2:2/4:2:0
-Sampling rate: 192KHz/24bit(max)
-Bandwidth: 18Gbps
-Compatible systems: Mac OS/Windows/Linux
-Power Supply: USB-C 5V/1A
-Function: CEC-capable(only HDMI Output 1 support)/Three-level cascade

Note:
-Please keep the HDMI Splitter always connected wit Power Source when using.
-Does not support extended display mode

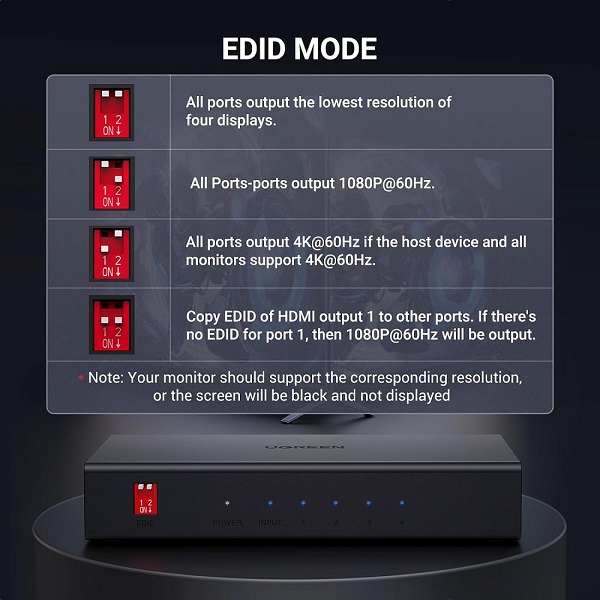

-With EDID control, displays should support the corresponding
resolution, or the screen will be black. If displays have different resolutions, we highly recommend connecting the higher-resolution with Output 1.
-Supports 4K@60Hz within 3M 30AWG Input and 5M 28AWG Output HDMI Cable
-Supports 4K@30Hz within 15M 26AWG Input and 15M 26AWG Output HDMI Cable
-Supports 1080P@60Hz within 20M 24AWG Input and 20M 24AWG Output HDMI Cable

-Weight: 200g
-Dimensions: (L)15.5 X (W)9.5 x (H)4.5cm

What's in the box:
-1x UGreen 90514 HDMI2.0 1X4 4Port Splitter
