Specification
WEB LINK: https://www.sonicinformed.co.za/catalogue/catalogue-peripherals-input-devices-usb-devices/ug-usbc-25085

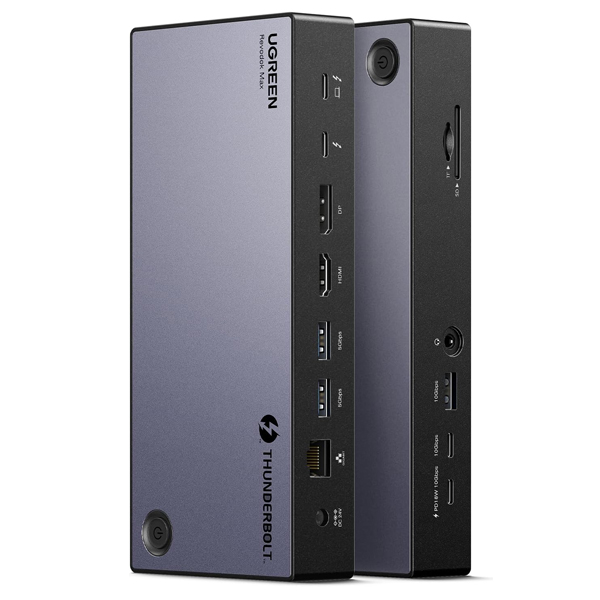

UGreen 25085 Thunderbolt 4 Revodok Max 313 13-In-1 Docking Station With 1X HDMI (8K@30Hz), DisplayPort, GLAN, DC5.5mm 140W (Max) Power Input, SD/TF Card Slot And 3.5mm Audio Port - Grey Colour
Features:
-Cooling Aluminum Shell
-High-Speed charging up to 60W
-Fast ethernet speed up to 1Gbps
-Dual Extended Display for macOS
-Support 8K@30Hz HDMI Single display
-Support Triple Extended Display For Windows

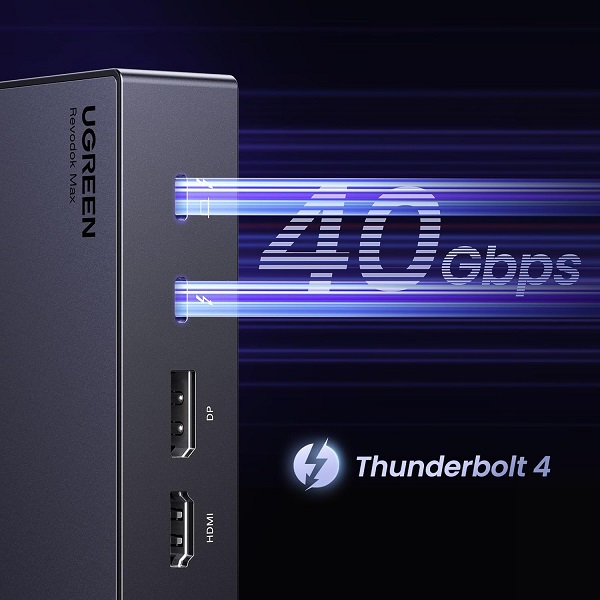

-Powerful Thunderbolt 4 data transfer speed, 40Gbps
-Easily transfer data via USBC / USB3.0 and SD/TF port
-Compatible with Thunderbolt 3, USB 4 and USB-C devices
Specifications:
-Model No: U709-25085
-Input: 1x Thunderbolt 4 (40Gbps)

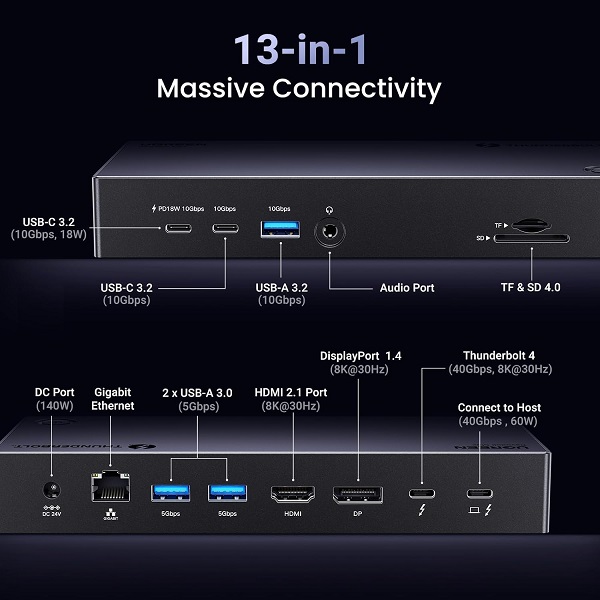

-Output: 1x Thunderbolt 4/HDMI/DP, 3x USB2.0, 2x USBC, 1x RJ45/SD+TF Card Slot/3.5mm
Video:
Thunderbolt 4:
-8K@30Hz and backwards compatible with Thunderbolt 4/USB4
-Supports charging of up to 15W (5V/3A)
-HDMI: Up to 8K@30Hz
-DisplayPort: Up to 8K@30Hz
USB:
USB-C:
-Data transfer rate up to 10Gbps (both ports)
-Fast charging of up to PD18W (only for the port with " PD 18W" icon)
-USB-A: Supports data transfer rate up to 10 / 5Gbps
-Network Port: 10/100/1000Mbps auto-negotiation
-SD/TF Card Slots: SD4.0 supports transfer rate up to 312MB/s
-3.5mm I/O: available for mics/earphones/speakers
-Charging: DC Port: 24V/5.83A
-Video Formats: RGB 8bpc, 444:420
-Sampling Rate: 24bit/192kHz(max.)
-Audio Formats: DTS AUDIO, DTS-HD, Dolby TrueHD, Dolby Digital, Dolby Digital Plus, Dolby Atmos
NOTES:
-This dock must be connected to the charger to work.
-Extend up to 3X 4K@60Hz displays or a single 8K@30Hz display for Windows laptops.
-Extend up to 3X 4K@60Hz displays or a single 4K@60Hz display for Macbook with Pro/Max version M-Chips and Intel Chips.
-Extend a single 4K@60Hz display for Macbook with basic M-Chips.
-Macbook only supports 4K@60Hz in single display mode due to hardware limitations.
-Full-function USBC laptops only support dual display with HDMI/DP, tablets only support single display, not compatible with Mac Mini 2018 Intel.
-Weight: 1600
-Dimensions: (L)25 x (W)25 x (H)8cm
What's in the box:
-1x 25085 TBT4.0 13in1 Docking Station
