Specification

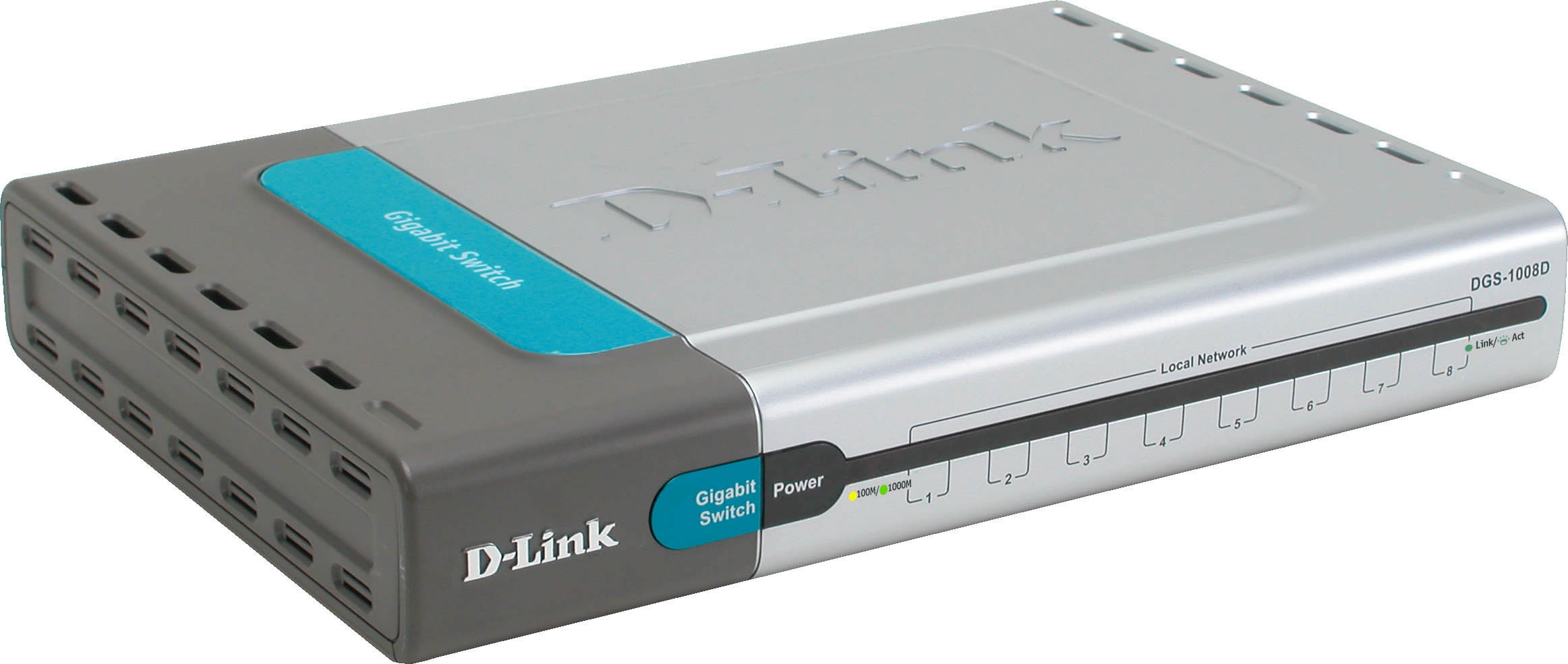

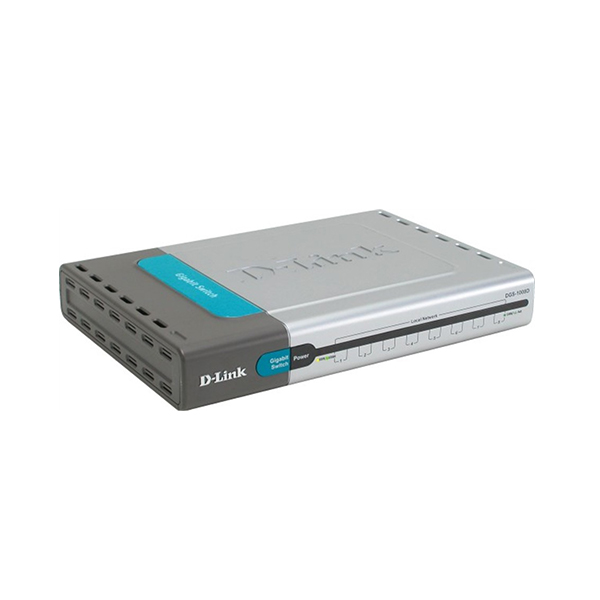

D-Link 8Port Gigabit Switch
Features:
Eight Gigabit Ethernet LAN ports for high-speed wired connections
Cable Diagnostics Function notifies users of cable conditions through product LEDs
Reduces power to a port when no link is detected
Adjust power to a port by detecting the length of the connected Ethernet cable
Specifications:
General: Eight 10/100/1000 Gigabit LAN ports
Functionality:
Advanced Features:
Green Ethernet
16Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Supports 9,216 Byte Jumbo Frames
Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
Supports Cable Diagnostics Function
Data Transfer Rates:
Ethernet:
10Mbps (half duplex)
20Mbps (full duplex)
Fast Ethernet:
100Mbps (half duplex)
200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
Dimensions: 131 x 82 x 22mm
Weight: 330grams
Power: 5V/1A Power Adapter
