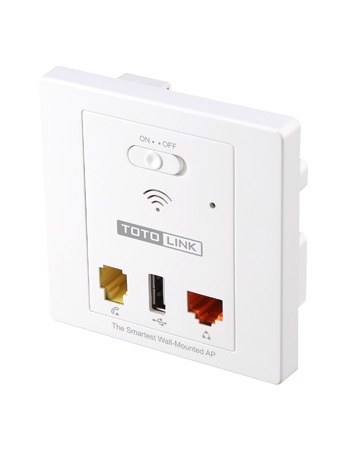

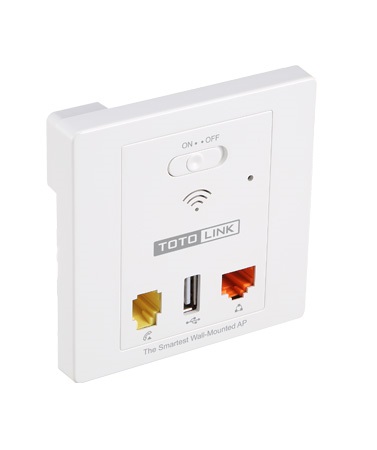

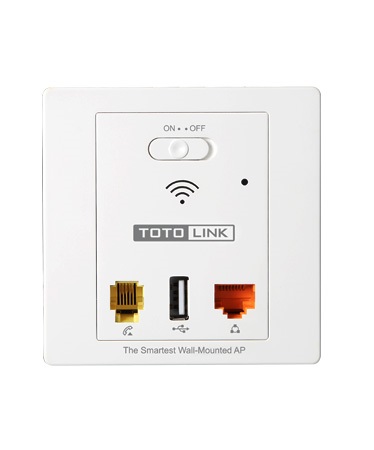

TOTOLINK 300MBPS IN-WALL ACCESS POINT

Features:
-Complies with IEEE 802.11 n/g/b standards
-Up to 300Mbps data rate for Wi-Fi network
-Functional and simple in-wall design
-Supports multiple APs management via Soft AC controller
-Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security
-Multi-SSID allows user to create multiple SSIDs according to their needs
-Bridge/Repeater/WDS modes selectable for different working environments
-802.3af PoE power supply simplifies the cable deployment
-USB 2.0 port can charge all kinds of smart phones and pads

Specifications:
Hardware Features:
Interface:
-1* 10/100Mbps RJ45 LAN Port
-1* 10/100Mbps RJ45 WAN/LAN Port
-1* RJ11 Port
-1* USB 2.0 Port
-Button: 1* Reset, 1* LED ON / OFF
Power Supply:
-48V DC/0.6A
-IEEE 802.3af PoE
-LED Indicator: 1* System
-Antenna: Internal Antenna

Wireless Features:
-Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.3af
-RF Frequency: 2.4¬2.4835GHz
Data Rate:
-11n: up to 300Mbps
-11g: Up to 54Mbps (dynamic)
-11b: Up to 11Mbps (dynamic)
-EIRP: < 20dbm
-Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
-Reception Sensitivity:
-270M: -61 dBm@10% PER
-135M: -65 dBm@10% PER
-54M: -68 dBm@10% PER
-11M: -85 dBm@10% PER
-6M: -88 dBm@10% PER
-1M: -90 dBm@8% PER

Software Features:
-Status: System Status
-Network: LAN Setting
-Operation Mode:
-Bridge Mode
-Repeater Mode
-Wireless:
-Wireless Status
-Basic Setting
-Multiple APs
-MAC Authentication
-WDS Setting
-Advanced Setting
-Management:
-Administrator Setting
-Time Setting
-Upgrade Firmware
-System Log
-Reboot Schedule

Environment:
-Operating Temperature: 0 C¬40 C (32 F¬104 F)
-Storage Temperature: -40 C¬70 C (-40 F¬158 F)
-Operating Humidity: 10%¬90% non-condensing
-Storage Humidity: 5%¬90% non-condensing
