Specification
WEB LINK: https://www.sonicinformed.co.za/catalogue/automation-intelligent-systems-industrial-computer-peripherals-power-supplies-cooler-master-desktop-psu/dc-px1200g-eu;

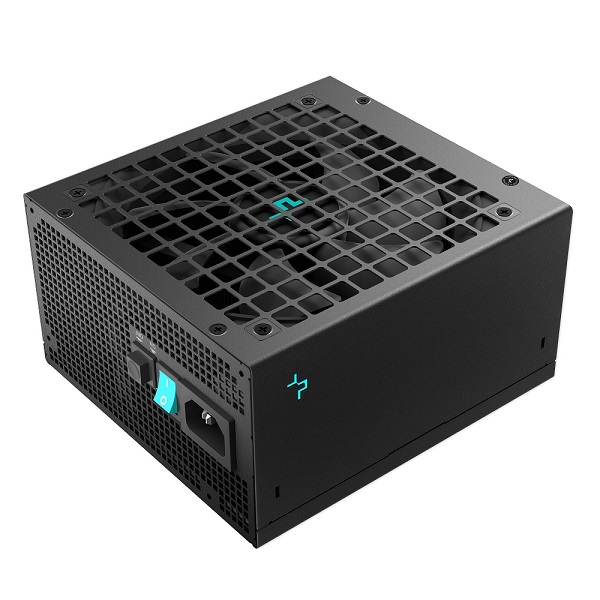

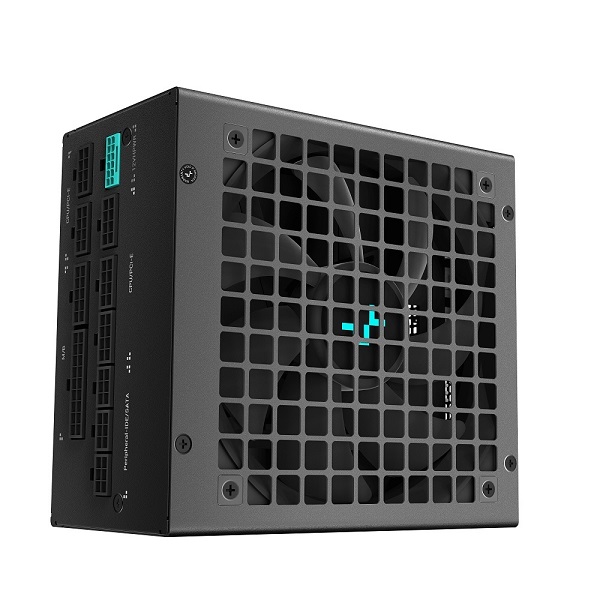

DeepCool PX1000G 1200W 80+ Gold And Cybenetics Platinum Certified ATX 12V V3.0 Full Modular Power Supply With Active PFC - Black Colour
Features:
-Latest ATX 3.0 standard
-1x 135mm FDB cooling Fan
-Full Japanese 105C capacitors
-Hold-up time to >16ms under full load
-80Plus Gold and Cybenetics Platinum certified
-Dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports
-Stable power for a wide range of components
-Optional to switch into semi-fanless operation*
-Equipped with the new PCI-e 5.0 12VHPWR cable
Specifications:
-Type: ATX12V V3.0
-Efficiency Certification: 80Plus GOLD/Cybenetics Platinum
-Fan Size: 135mm
-Fan Bearing: FDB (Fluid Dynamic Bearing)
-Topology: Active PFC + Half Bridge SRC LLC+DC to DC
-Capacitors: Full Japan Electrolytic Capacitors
-Power Good Signal: 100-150ms
-Hold Up Time: >16ms
-Efficiency: >90% Under Typical Load (50% Loading)
-Protection: OPP/OVP/SCP/OTP/OCP/UVP
-Operation Temperature: 0 - 40C
-Regulatory: CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS
-ErP Regulation ErP 2014
-Environment Protection: WEEE/RoHS/Triman
-MTBF: 100,000 Hours

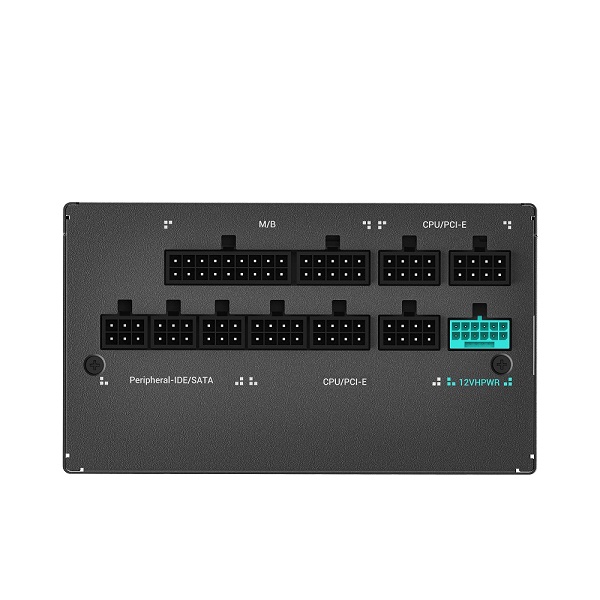

Connectors:
-1x Main Power Connector 24(20+4)Pin x1
-2x CPU (4+4)Pin x1
-3x PCI-E (6+2)Pin x1
-2x SATA x4
-1x 12VHPWR (16Pin) x1
-1x 4Pin Peripheral x4
Notes:
* In hybrid mode, the 135mm FDB Fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
-Weight: 3600g
-Dimensions: (L)35 x (W)22 x (H)13cm

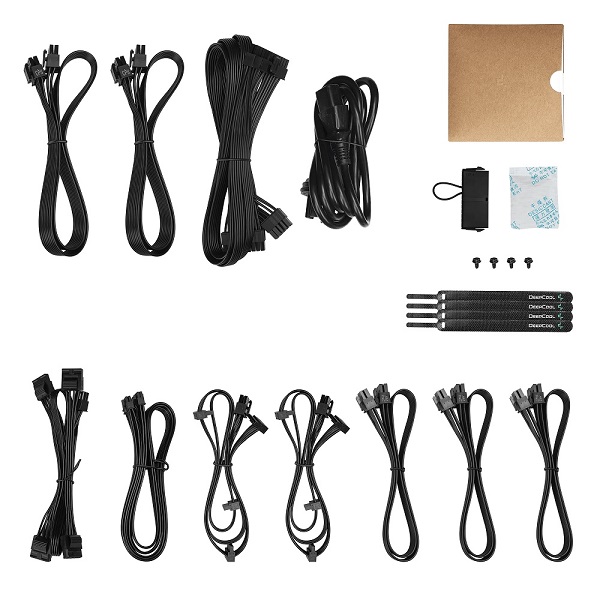

What's in the box:
-1x DC PX1200G PSU
