DEEPCOOL - DC-PL750-D



DC PL750D 750W 80+BRZ ATX 12V V3.0 PSU

Description

DeepCool PL750D 750W 80+ Bronze ATX 12V V3.0 Direct Cable Power Supply WIth 1X 12VHPWR Cable And Active PFC And 1X 120mm Hydro Bearing Fan - Black Colour


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/catalogue-main-components-desktop-power-supply-deepcool-desktop-psu/dc-pl750-d

DeepCool PL750D 750W 80+ Bronze ATX 12V V3.0 Direct Cable Power Supply With 1X 12VHPWR Cable And Active PFC And 1X 120mm Hydro Bearing Fan - Black Colour

Features:
-Certified 80Plus Bronze
-120mm Hydro-Bearing Fan
-Intel latest ATX 3.0 standard
-Active PFC and DC-to-DC conversion
-85% efficiency under typical loads
-High-grade electrolytic capacitors
-Provides reliable and stable power
-Hold-up time to >16ms under full load
-With native PCIe 5.0 power connector, 480W

Specifications:
-Type: ATX12V V3.0
-Product Dimensions: (L)140x(W)150x(H)86mm
-Efficiency certification: 80Plus Bronze
-Fan Size: 120mm
-Fan Bearing: Hydro Bearing
-Topology: Active PFC+DC to DC
-Capacitors: Chinese Electrolytic Capacitors
-Power Good Signal: 100-150ms
-Hold Up Time: >16ms
-Efficiency: >85% Under Typical Load (50% Loading)
-Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
-Operation Temperature: 0-40C
-Regulatory: CE/FCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/TUV-RH
-ErP Regulation: ErP 2014
-Environment Protection: WEEE/RoHS/Triman/P65
-MTBF: 100,000 Hours

Cable Connectors:
-1x Main Power Connector (20+4)Pinx1
-2x CPU(4+4)Pinx1
-1x PCI-E(6+2)Pinx1
-1x PCI-E(6+2)Pinx2
-1x 12VHPWR(16Pin)x1
-2x SATAx4 + 4Pin Peripheralx1

-Weight: 2400g
-Dimensions: (L)28 x (W)19.5 x (H)11.5cm

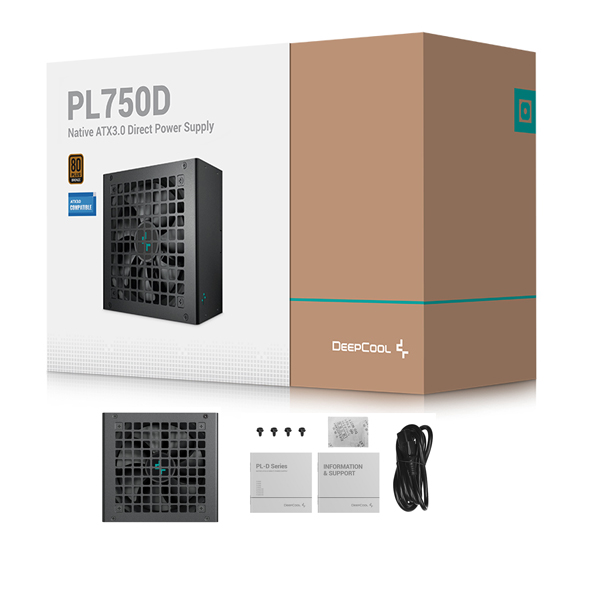

What's in the box:
-1x DC PL750D PSU
