Specification
WEB LINK: https://www.sonicinformed.co.za/catalogue/catalogue-main-components-desktop-power-supply-deepcool-desktop-psu/dc-pk750d-eu;

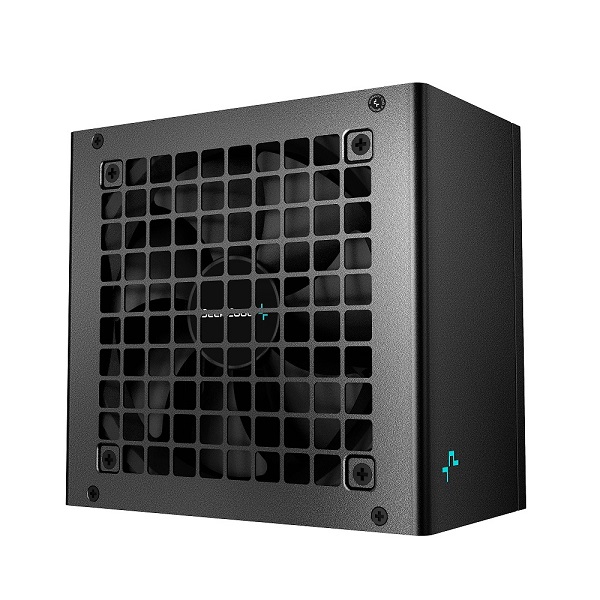

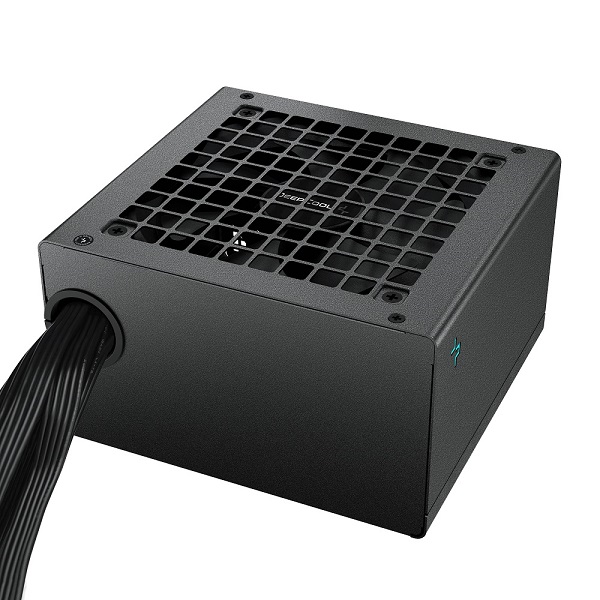

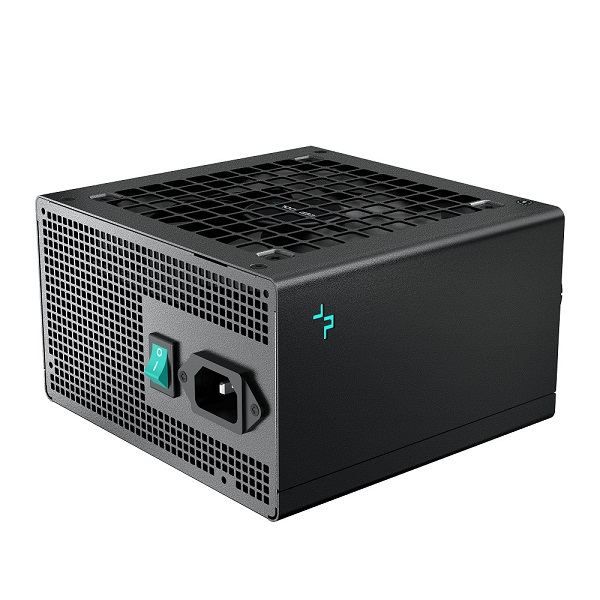

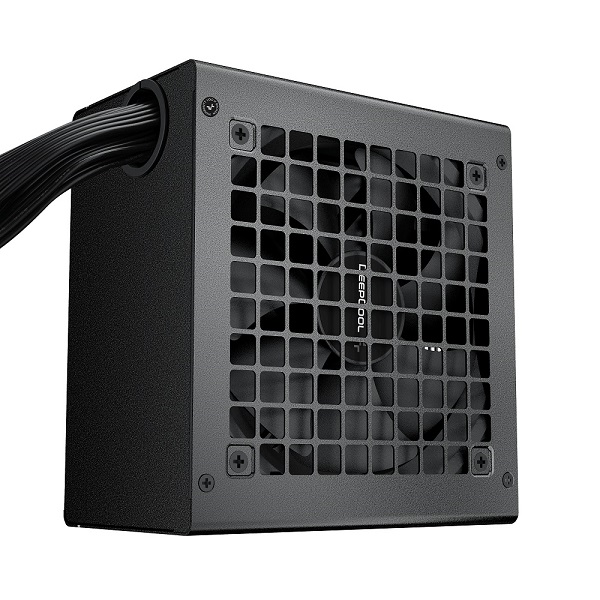

DeepCool PK750D-F20 750W 80+ Bronze Certified ATX12V V2.4 Power Supply With DC-DC Conversion And Active PFC Design - Black Colour
Features:
-120mm Hydro Bearing cooling fan
-Reliable 80Plus Bronze efficiency
-Stability and low noise performance
-Highly efficient DC-DC and Active PFC design
-Deliver up to 85% efficiency under typical load
-+3.3V and +5V rail for improve system compatibility
Specifications:
-Model No: PK750D-F20
-Type: ATX12V V2.4
-80PLUS Certifications: Bronze
-Fan Size: 120mm
-Fan Bearing: Hydro Bearing
-Topology: Active PFC+DC to DC
-Capacitors: Taiwan capacitor
-Power Good Signal: 100-150ms
-Hold Up Time: =16ms(80% Load)
-Efficiency: =85% Under Typical Load(50% Loading)
-Protection: SCP, OPP, OTP, OVP, OCP, UVP
-Operation Temperature: 0-40 C
-Regulatory: CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/TUV-RH/CCC/UKCA/EAC/RCM/BIS/KC
-ErP Regulation: ErP 2013
-MTBF: 100,000 Hours
Cable Connectors:
-1x Main Power Connector 24(20+4)Pin x1
-1x EPS 12V Connector 8(4+4)Pin x2
-2x PCI-E (6+2)Pin x2
-2x SATA x4
-1x 4Pin Peripheral x4
-Weight: 2200g
-Dimensions: (L)27 x (W)20 x (H)11cm
What's in the box:
-1x DC PK750D PSU
