DEEPCOOL - DC-PF700D-EU



DC PF700D 700W 80+WH ATX12V V2.4 PSU-BK

Description

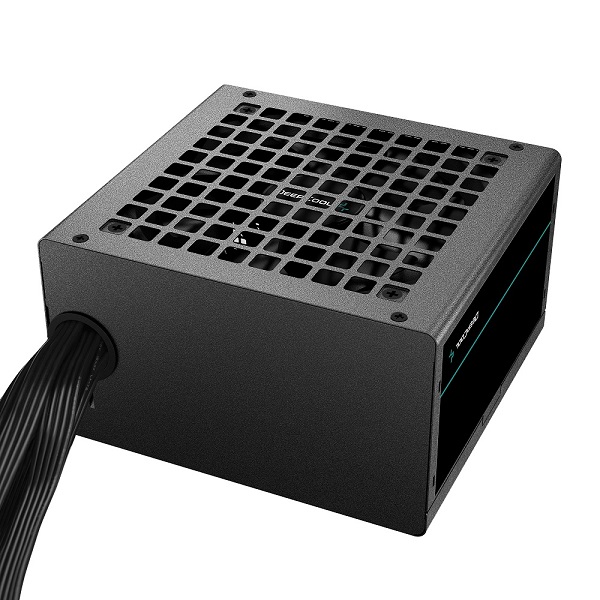

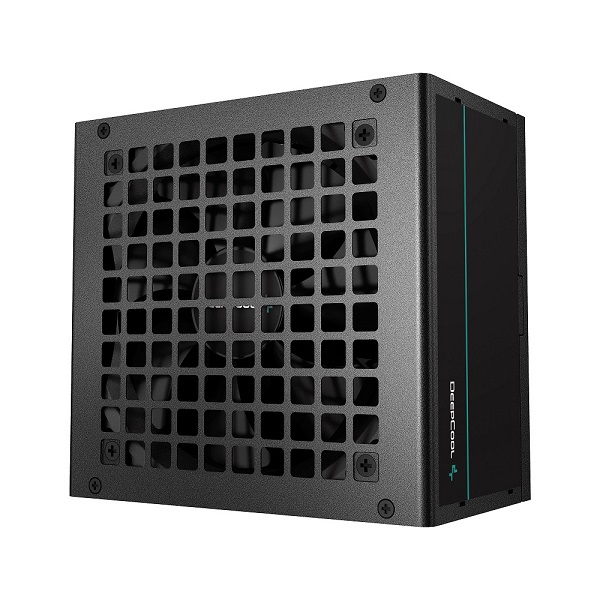

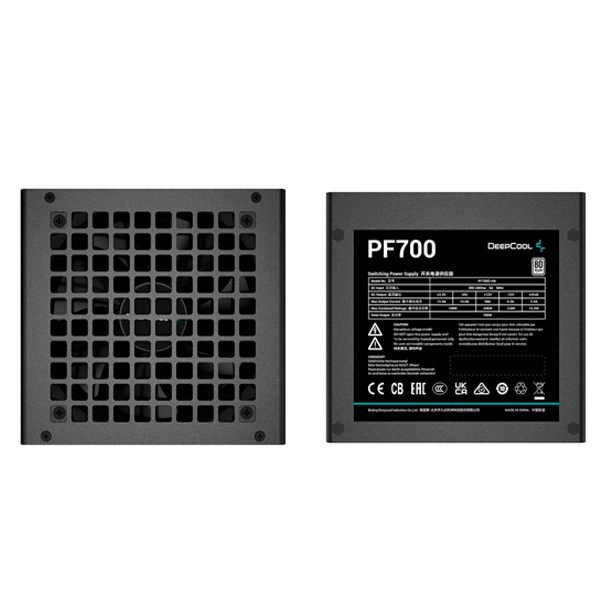

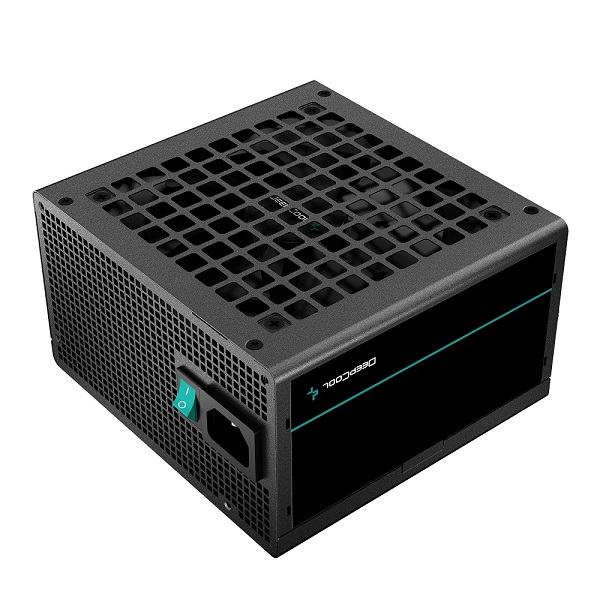

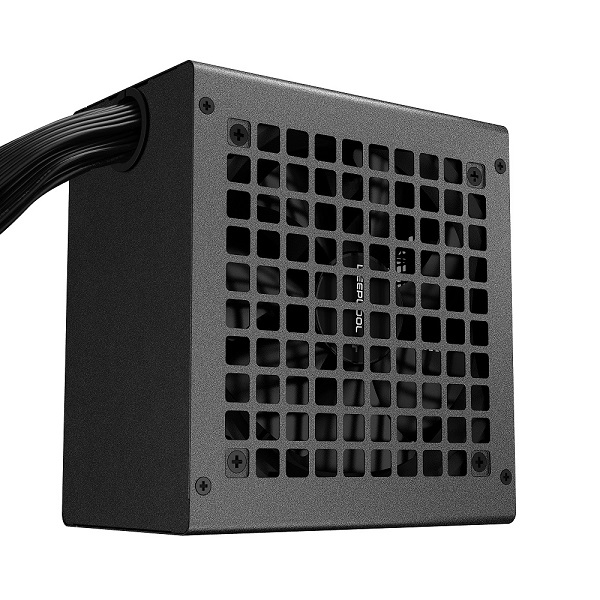

DeepCool PF700D-HA 700W 80+ White Certified (230V EU) ATX12V V2.4 Power Supply With 1X 120mm Silent Hydraulic Bearing Fan And Active PFC Design - Black Colour


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/catalogue-main-components-desktop-power-supply-deepcool-desktop-psu/dc-pf700d-eu;

DeepCool PF700D-HA 700W 80+ White Certified (230V EU) ATX12V V2.4 Power Supply With 1X 120mm Silent Hydraulic Bearing Fan And Active PFC Design - Black Colour

Features:
-120mm silent hydraulic bearing fan
-Safe and Stable power performance
-Reliable 80Plus Standard efficiency
-85% efficiency under typical loading of 50%
-Optimally balanced for low-noise performance

Specifications:
-Model No: PF700D-HA
-Type: ATX12V V2.4
-80PLUS Certifications: 230V EU White
-Fan Size: 120mm
-Fan Bearing: Hypro Bearing
-Topology: Active PFC+Double tube forward
-Capacitors: Taiwan bulk capacitor
-Power Good Signal: 100-500ms
-Hold Up Time: =12ms(75% Load)
-Efficiency: =85% Under Typical Load(50% Loading)
-Protection: OPP/OVP/SCP/UVP
-Operation Temperature: 0-40C
-Regulatory: CB/CCC/CE/UKCA/EAC/RCM/KC
-ErP Regulation: ErP 2010
-MTBF: 100,000 Hours

Cable Connectors:
-1x Main Power Connector 24(20+4)Pin x1
-1x EPS 12V Connector 8(4+4)Pin x2
-2x PCI-E (6+2)Pin x2
-2x SATA x3 + 4Pin Peripheral x1

-Weight: 1900g
-Dimensions: (L)26 x (W)18 x (H)12cm

What's in the box:
-1x DC PF700D-HA PSU
