Specification
WEB LINK: https://www.sonicinformed.co.za/catalogue/main-components-cases-mid-tower/mcb-k501l-kann-s00;

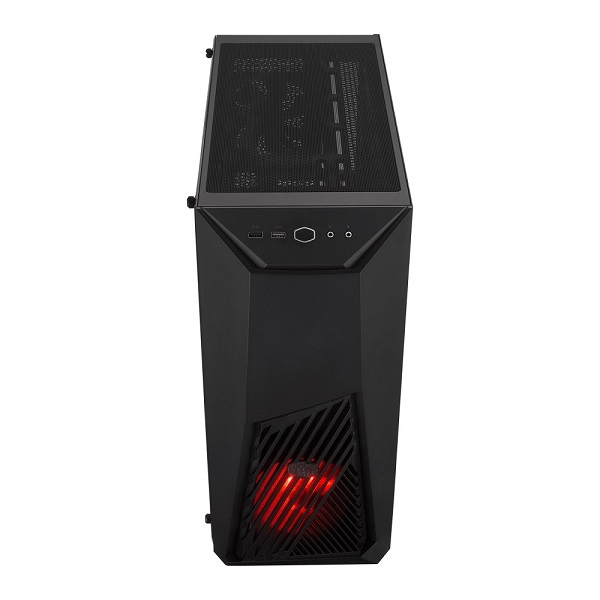

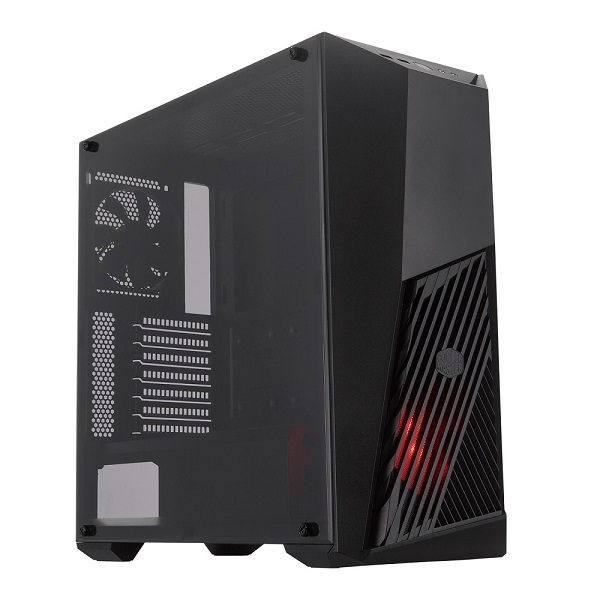

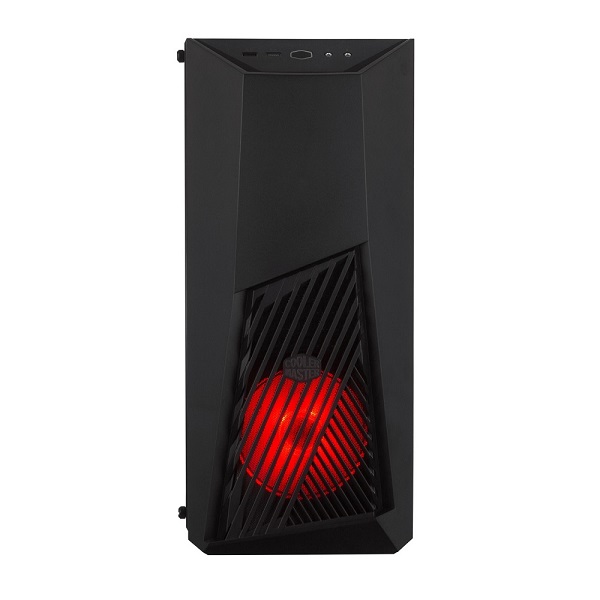

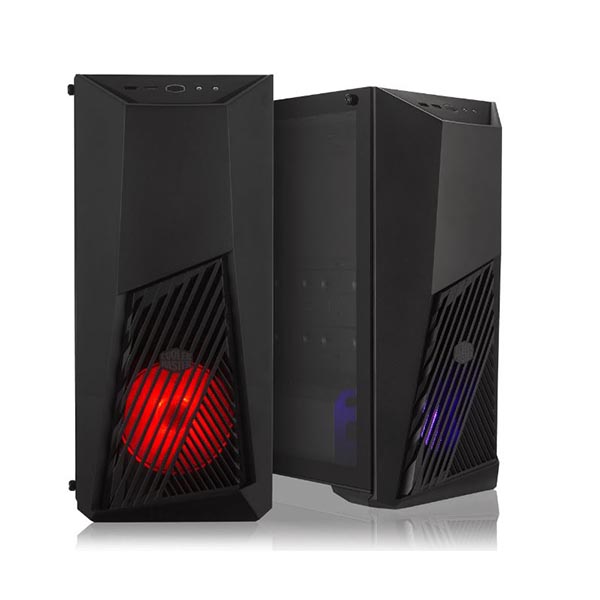

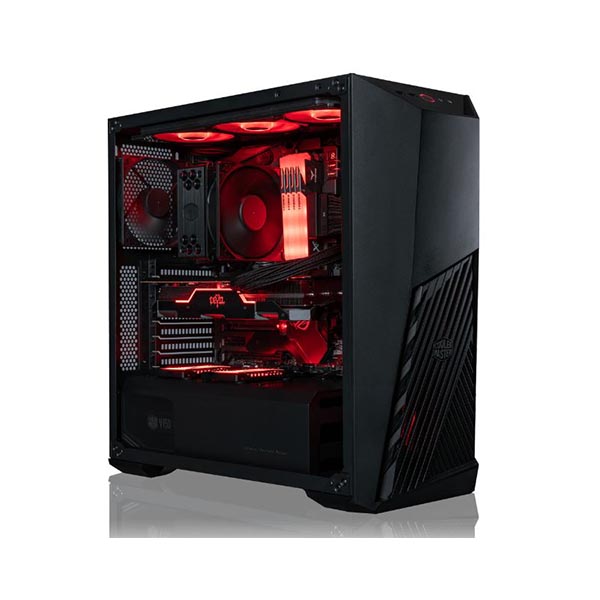

Cooler Master MasterBox K501L ATX Tower Case With Front Bottom Mesh Design Panel, 1X 120mm Pre-Installed RED LED Fan And Edge-to-Edge Acrylic Side Panel - Black Colour
Features:
-Angled Ventilation
-Illuminated Fan and Power Button

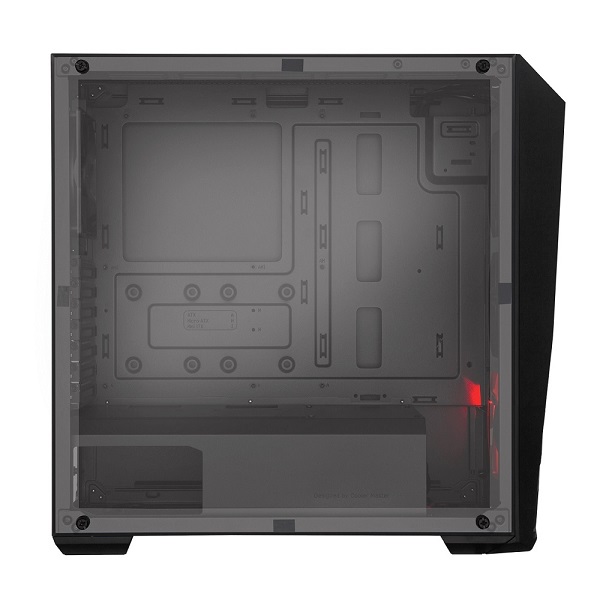

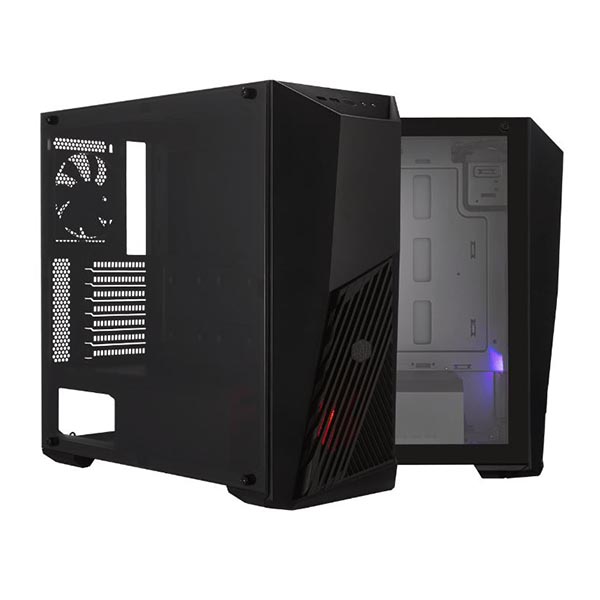

-Edge-to-Edge Acrylic panel
-Dual 360mm Radiator Support
-Versatile Cooling Options
-Versatile Component Support
Specifications:

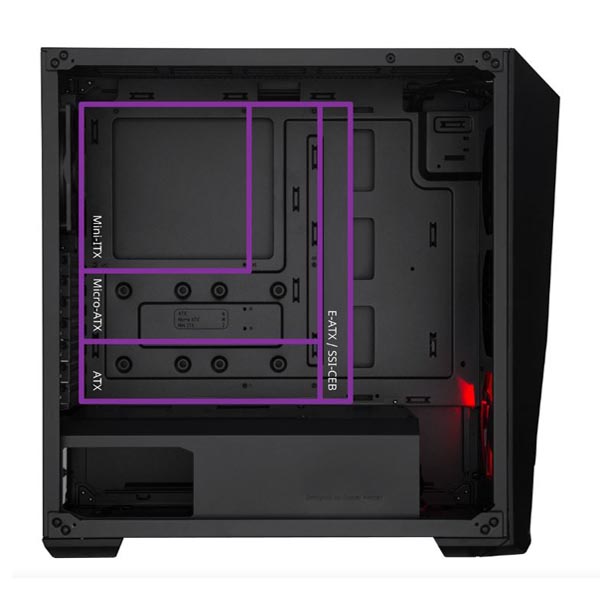

-Motherboard Support: Mini-ITX/Micro-ATX/ATX/SSI/CED/E-ATX
-Expansion Slots: 7
-Exterior Colour: Black
-Dust Filters: Top, Front, Bottom
-Power Supply: Bottom Mount, ATX
-Cable Routing, Behind MB tray: 19mm
Materials:
-Body: Steel, Mesh, Plastic
-Side Panel: Acrylic
Dimensions:
-Incl. Protrusions: 496*217*469mm
-Excl. Protrusions: 428.7*205*458*5mm
Drive Bays:
-5.25" ODD: 0
-3.5/2.5" Combo: 2
-2.5" SSD: 4 max(2+2 combo)

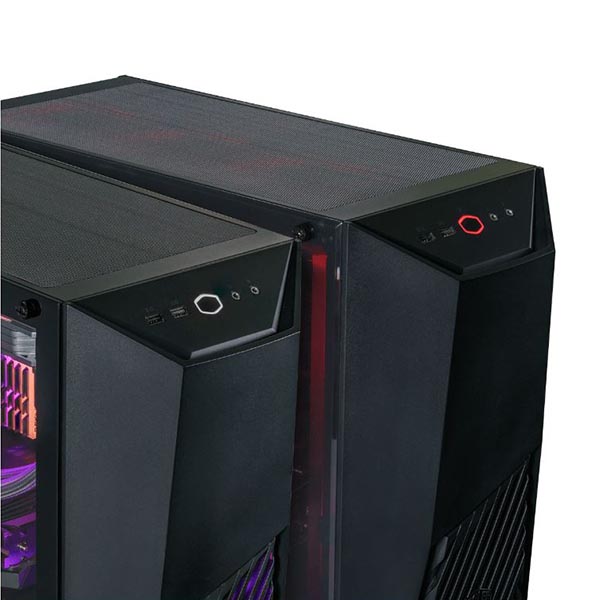

I/O Panel:
-USB Ports: USB3.0 x 1/USB2.0 x 1
-Audio In/Out: 3.5mm audio x 1/3.5mm mic x 1
-Other: N/A
Pre-Installed Fans:
-Top: N/A

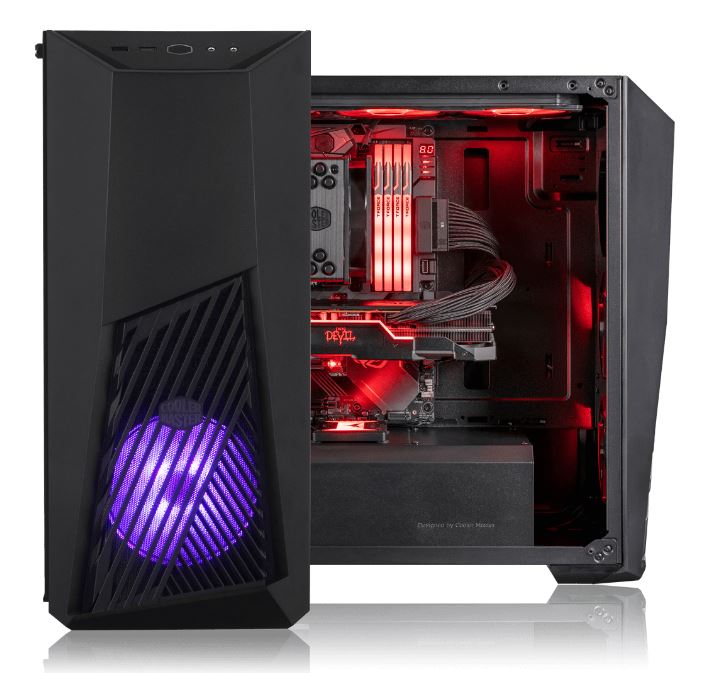

-Front: 120mm x 1 Red Led
-Rear: 120mm x 1
-Bottom: N/A
Fan Support:
-Top: 120/240/360mm
-Front: 120/140/240/280/360mm
-Rear: 120mm
-Bottom: N/A
Clearances:
-CPU Cooler: 165mm
-PSU: 180mm(295mm w/HDD removed)
-GPU: 410mm
-Weight: 6590g
-Dimensions: (L)57 x (W)53 x (H)29
What's in the box:
-1x Cooler Master MB K501L ATX Case
-1x 120mm RED LED Fans(front)
-1x 120mm Fan (Rear)
-1x User Manual
