DEEPCOOL - DC-CG580-W



DC CG580WH PANORAMIC-VIEW ATX CASE W/TG

Description

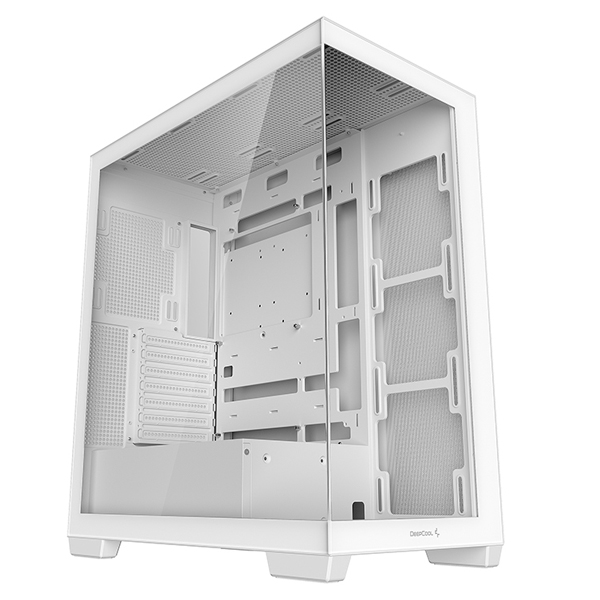

DeepCool CG580 Single-Chamber Panoramic Scenic View Designed ATX Case With Front And Side Tempered Glass Panels And Supporting 360mm Radiator Size* And Magnetic Top Filter - White Colour


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/catalogue-main-components-cases-mid-tower/dc-cg580-w

DeepCool CG580 Single-Chamber Panoramic Scenic View Designed ATX Case With Front And Side Tempered Glass Panels And Supporting 360mm Radiator Size* And Magnetic Top Filter - White Colour

Features:
-Modern and Functional Design

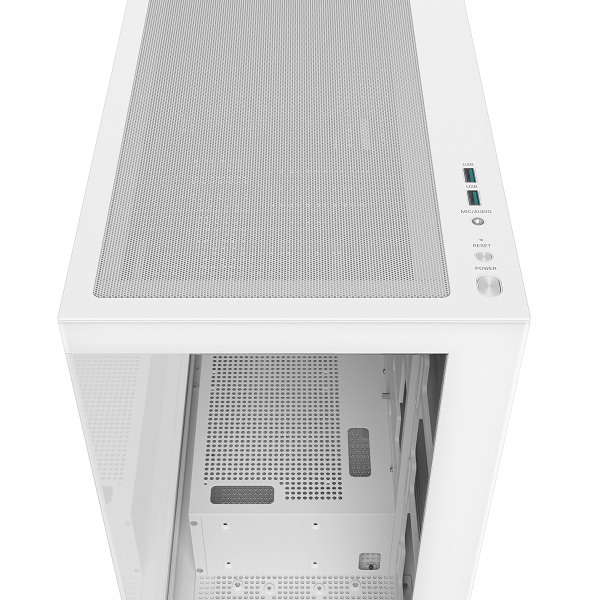

-Built with magnetic top filter
-Support top and side 360mm radiators
-2x USB3.0 ports and Hybrid audio port

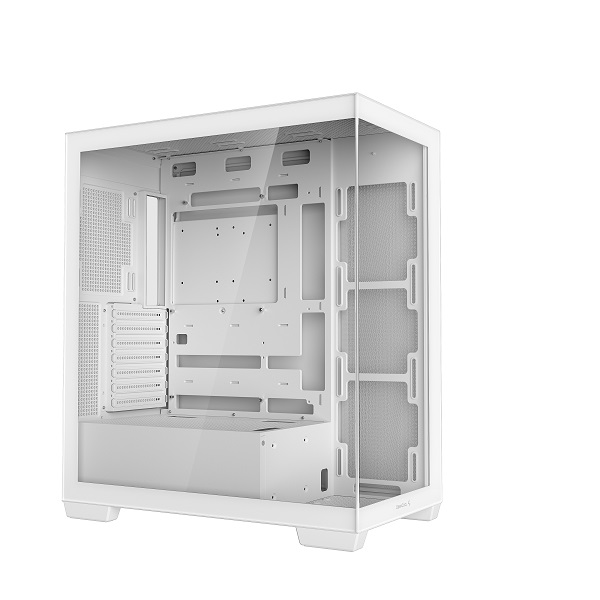

-Picturesque Single-chamber Panoramic case

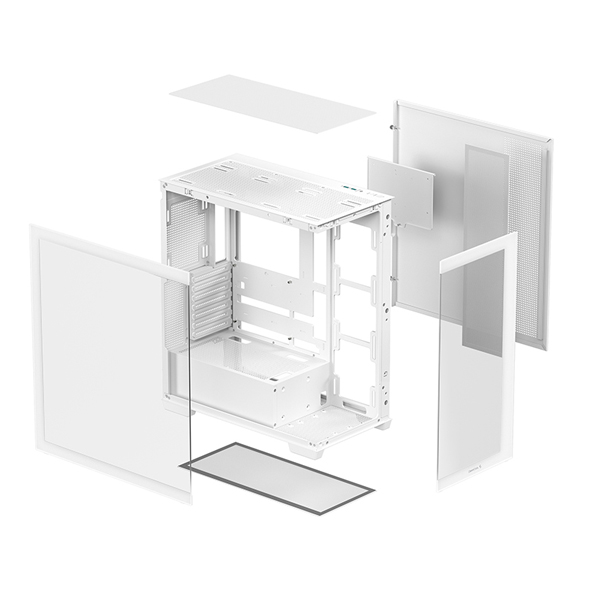

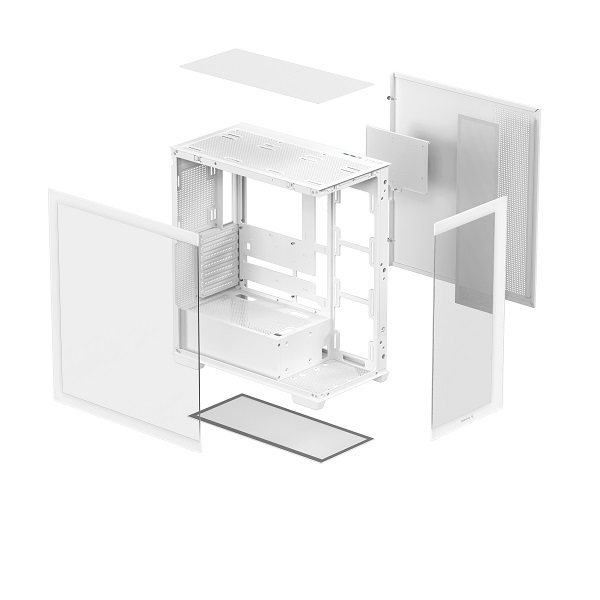

-Removable front and side tempered glass side panels
-Designed to support up to ATX M/Bs, 410mm GPUs, 210mm PSUs
-Support up to 9x 120mm cooling fans and 176mm tall air coolers
-With 33mm of cable management via internal single chamber layout

Specifications:
-Product Dimensions: (L)437 x (W)235 x (H)501mm
-Net Weight: 7.9kg
-Materials: ABS+SGCC+Tempered Glass
-Motherboard Support: ITX/Micro-ATX/ATX/ATX/Micro-ATX(Rear Connector)
-Front I/O Ports: 2x USB3.0, 1x Audio, Power+Reset
-3.5" Drive Bays: 2
-2.5" Drive Bays: 2+1
-Expansion Slots: 7Slots

Fan Support:
-Pre-Installed Fans: None
-Top: 3x120mm/2x140mm
-Side: 3x120mm
-Rear: 1x120mm/1x140mm
-Bottom: 1x120mm (3.5" HDD/120FAN - choose one of two)
-PSU Shrouded: 2x120mm

Radiator Support:
-Top: 120/140/240/280/360mm
-Side: 120/240/360mm
-Rear: 120/140mm

-CPU Cooler Height Limit: 176mm
-GPU Length Limit: 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)
-Power Supply Type: ATX PS2 (max. length: 210mm)

Note:* 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)

-Weight: 9800g
-Dimensions: (L)57 x (W)53 x (H)31cm

What's in the box:
-1x DeepCool CG580 ATX Case
