Specification
WEB LINK: https://www.sonicinformed.co.za/catalogue/automation-intelligent-systems-industrial-computer-peripherals-power-supplies-cooler-master-desktop-psu/mpz-d001-afbapv-eu;

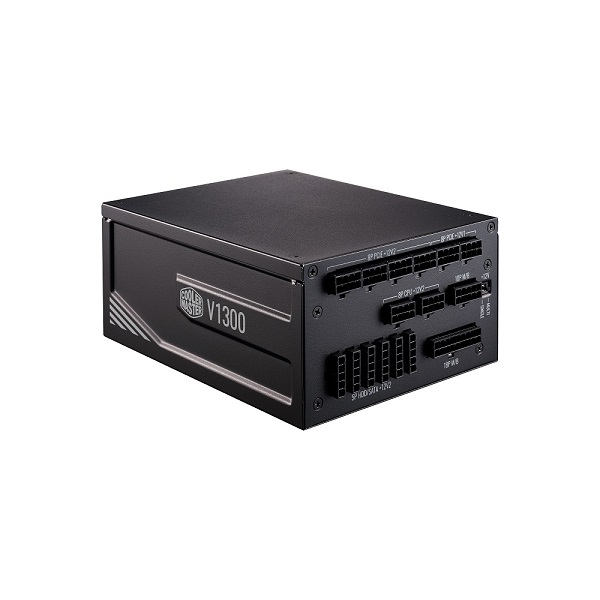

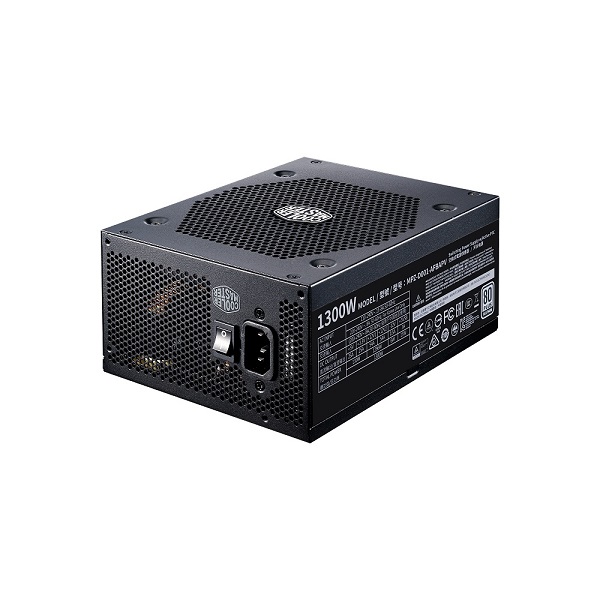

Cooler Master V Platinum Series 1300W 80Plus Platinum Certified Full Modular Power Supply With 1X 135mm TBB Fan And Single / Mult-Rail Switch - Black Colour
Features:
-Thermal Regulation Mode*

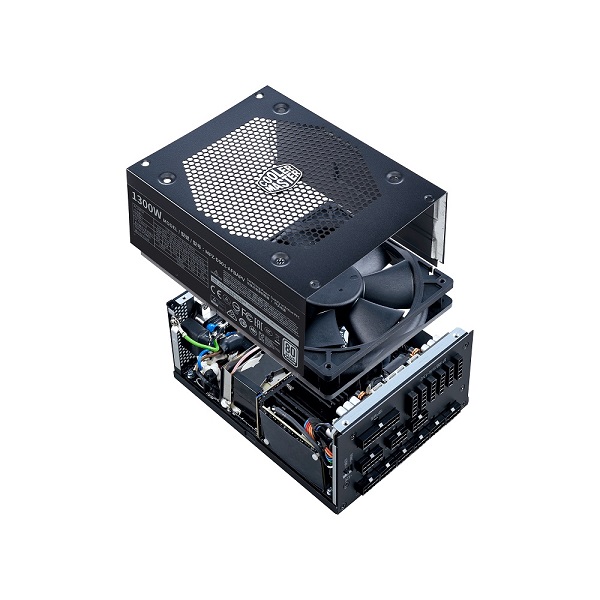

-Build with 1X 135mm TBB Fan**
-Built-in single/multi-rail switch***
-Highly efficient & quiet operation
-Guaranteed typical efficiency of 92%
-80Plus Platinum efficiency certification
-Comes with improved 16AWG PCI-e Cables
-Full modular cabling & 100% Japanese capacitors
-Full-bridge LLC resonant converter & DC-DC technology
Specifications:
-Product Name: V1300 Platinum
-Item Code: MPZ-D001-AFBAPV
-ATX Version: ATX 12V
-PFC: Active PFC
-Input Voltage: 110-240V
-Input Current: 15-8A
-Input Frequency: 50-60Hz
-Fan Size: 135mm
-Fan Bearing: TBB
-Efficiency: 92% @ Typical Load
-80 PLUS Rating: 80 Plus Platinum
-ErP 2014 Lot 3: Yes
-Operating Temperature: 0~50°C
-MTBF: >100,000 hours
-Protections: OCP/OPP/SCP/OCP/UVP/OTP
-Regulatory: cTUVus, TUV, CE, CCC, FCC, EAC, RCM, BSMI, KC
Cable Connectors:
-1x ATX 24 Pin
-1x EPS 4+4 Pin
-1x EPS 8 Pin
-16x SATA
-8x Peripheral 4 Pin
-1x FDD
-12x PCI-e 6+2 Pin
NOTES:
-*Keeps the PSU quiet & stable by maintaining a constant fan speed up to 60% of the maximum load, this increases the lifespan of the PSU by keeping the fan under minimal stress w/o risking the safety or performance of the system as a whole.
-**This special TBB fan bearing can operate safely and reliably in temperatures up to 70°C.
-***Easily use multi-rail mode for normal use & single rail mode for specialized needs such as overclocking, change modes with flick of a switch.
-Weight: 3628g
-Dimensions: (L)41 x (W)37 x (H)23.5cm
What's in the box:
-1x CM V1300 80+ Platinum PSU
