Specification
WEB LINK: https://www.sonicinformed.co.za/catalogue/automation-intelligent-systems-industrial-computer-peripherals-power-supplies-cooler-master-desktop-psu/mpw-6001-psabn1;

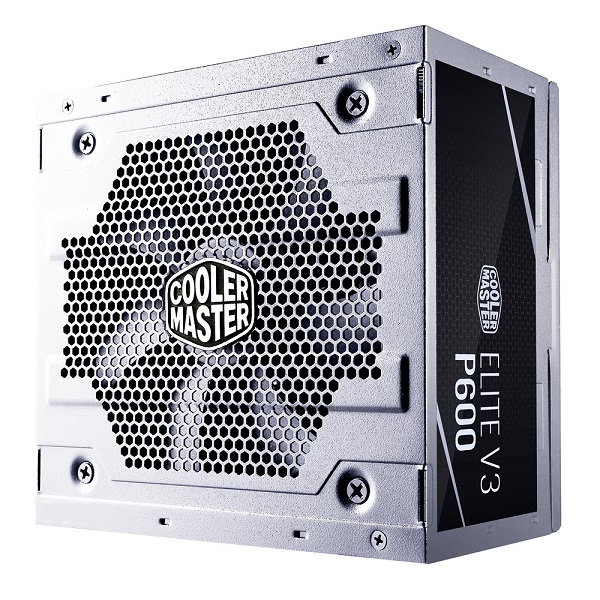

Cooler Master Elite V3 P600W 230V Power Supply Active PFC + Forward Topology Design, High-Temperature Resistance And 75% Efficiency @ Typical Load - Grey Colour
Features:
-Peak Power Tolerance
-Durable, Reliable, and Safe
-High Temperature Resistance
-Active PFC + Forward Topology Design
-Maintains an average efficiency of 75% at 50% load
Specifications:
-ATX Version: ATX 12C Ver. 2.41
-PFC: Active PFC
-Input Voltage: 200-240V
-Input Current: 5A
-Input Frequency: 50-60Hz
-Dimensions (LxWxH): 140*150*86mm
-Fan Size: 120mm
-Fan Cearing: Sleeve Bearing
-Efficiency: 75%
@ Typical load
-80PLUS Rating: Non 80 Plus
-EfP 2014 Lot 3: Yes
-Operating Temperature: 40°C
-Power Good Signal: 100-500ms
-Hold Up Time: > 14ms @ 100% load
-MTBF: > 100,000 hours
-Protections: OVP/OPP/OTP/SCP/UVP
-Regulatory: TUV/CE/CB
-Peak Current: 40A
-Peak Power: 600W
Connectors:
-ATX 24pin x 1
-EPS 4+4pin x 1
-SATA x 5
-Peripheral 4pin x 3
-PCI-e 6+2pin x 2
What's in the Box:
-1x CM Elite 600W PSU
