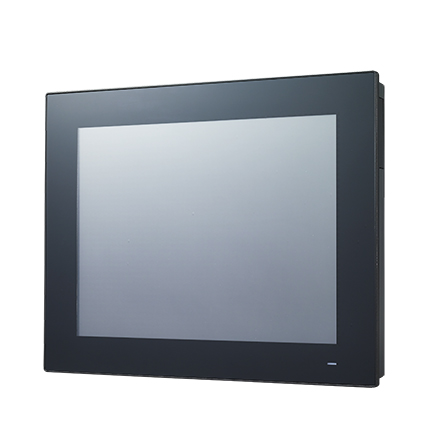

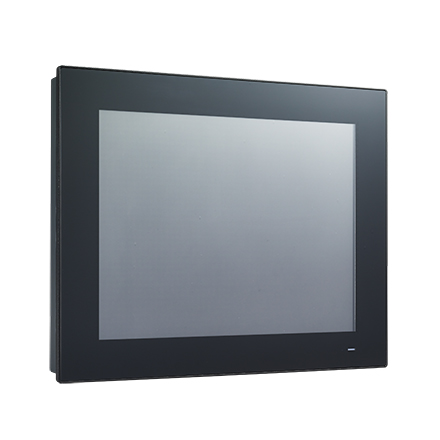

ADVANTECH - PPC-3151-650AE



ADV 15" FANLESS PANEL PC W/I5 DUAL

Description

Advantech 15" Fanless Panel PC With Intel Core i5-6300U Processor, Supports IX PCIe x4 or PCI, 1X M.2 bay (2242) For Storage Only + 1X Isolated RS-422/485 With Auto Flow And Supports VESA 75 Mounting Interface


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/automation-industrial-automation-human-machine-interfaces-industrial-panel-pc/ppc-3151-650ae;

Advantech 15" Fanless Panel PC With Intel Core i5-6300U Processor, Supports IX PCIe x4 or PCI, 1X M.2 bay (2242) For Storage Only + 1X Isolated RS-422/485 With Auto Flow And Supports VESA 75 Mounting Interface

Features:
-15" XGA TFT LCD Flat panel with projected capacitive (default) or resistive (optional) touchscreen
-Intel Core i5-6300U (default)/i7/i3 (optional) processor with fanless system design
-Supports eith 1x PCIe or PCI
-1x M.2 bay (2242) for storage only
-1x Isolated RS-422/485 with auto flow
-Wide power input range (9 ~32VDC)
-Dual Gigabit Ethernet, IEEE1588 compliant
-3x Independant displays
-Supports VESA 75 mounting interface

Specifications:
-CPU: Intel Core i5-6300U (dual-core)
-Frequency: 2.4GHz, turbi boost up to 3.0GHz
-Smart Cache: 3MB
-Memory: 1x SODIMM, DDR4 1866/2133, max. 16GB(1.2V)

Storage:
-1x 2.5" SATA bay
-1x M.2 bay (size: 22x42mm, socket 2 B-key, for storage only)
-Network (LAN): 2x 10/100/1000Mbps Ethernet (Intel I211-AT, Intel I219LM)

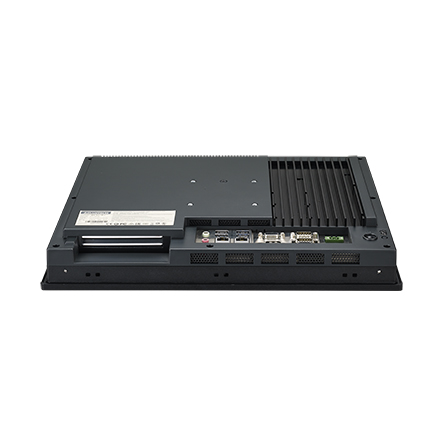

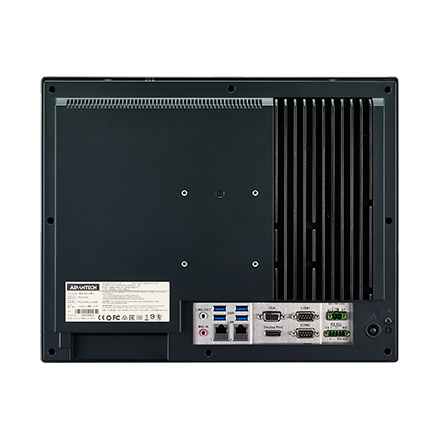

I/O:
-3x Serial ports (2x RS-232, 1x RS-422/485 with 1KVDC isolation)
-4x USB3.0 ports at rear
-1x Line-Out, 1x Mic-in
-1x DB15 VGA
-1x DisplayPort 1.2

Expansion:
-1x Mini PCIe
-1x PCIe x4 (default), 1x PCI (in the accessory box)
-Optional: 1x Cfast, 1x CF card, 1x internal USB dongle, 2x RS232 or 1x RS232+GPIO

-Weight: 7000g
-Dimensions: (L)51 x (W)46 x (H)20cm

What's in the box:
-1x ADV 15" Fanless Panel PC
