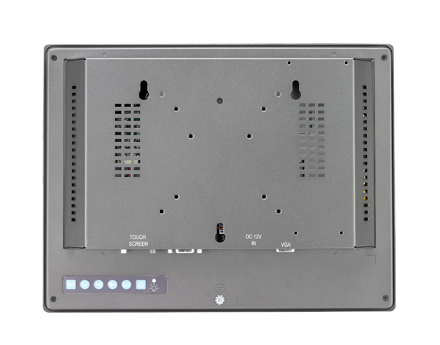

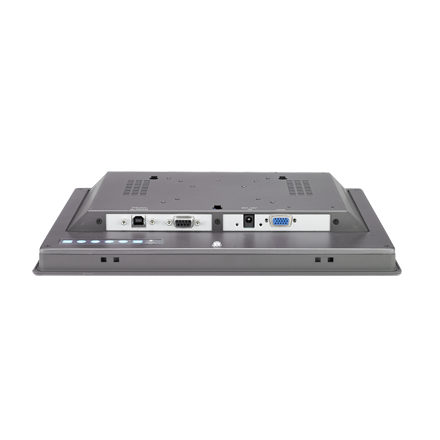

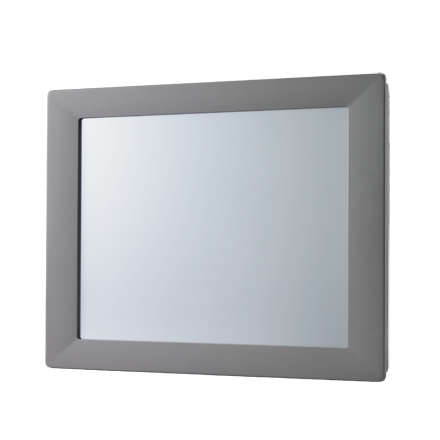

ADVANTECH - FPM-2120G-R3AE


FPM-2120G-R3AE

Description

FPM-2120G are industrial-grade 12'' TFT LCD with LED backlightflat panel monitor with an Al-Mg front panel, a modern appearance, and one of the most competitive prices for 12'' LCD with LED backlight monitor on the market. The FPM-2120G are also extremely light and thin, and provides many industrial-grade features such as a stainless steel chassis, VESA mounting flexibility, and more. The FPM-2120G are especially suitable for industrial PCs such as IPC-610 or IPC-6806. This combination leads to an extremely reliable and tough system, ready to operate in a wide variety of industrial applications.

Specification

FPM-2120G-R3AE Specs

Display/Display Size12"
Display/Display TypeSXGA TFT LCD with LED backlight
Display/Max. Colors16.2 M
Display/Max. Resolution800 x 600
Display/Backlight Life (hrs)50,000 hrs
Display/Luminance (cd/m2)450
Display/Viewing Angle (H/V°)160°(V),140°(H)
General/CertificationsBSMI, CCC, CE, FCC, UL
General/Dimensions311 x 237 x 40.63 mm (12.24" x 9.33" x 1.60")
General/EnclosureFront panel: Aluminum, Rear cover: SECC chassis
General/MountingPanel, wall, desktop, VESA arm, or 19" rackmount with optional mounting kit
General/Power InputExternal 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included)
General/Video PortVGA
General/Weight (Net)4kg (8.82 lbs)
Touchscreen (Optional)/TouchscreenCombo RS-232 & USB interface
Touchscreen (Optional)/OS SupportWindows® XP,Vista,7,8,XPe,CE and Linux
Environment/Operating Temperature0 ~ 50°C (32 ~ 122°F)
Environment/Storage Temperature-20 ~ 60°C (-4 ~ 140°F)
Environment/Storage Humidity10 ~ 95% non-condensing
Environment/Vibration5 ~ 500 Hz, 1 Grms (Operating, Random)
Environment/WaterproofFront Panel IP65 Compliant
