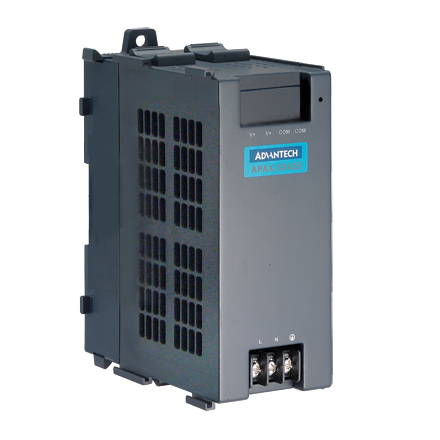

ADVANTECH - APAX-5343E-AE



APAX-5343E-AE

Description

Advantech’s APAX-5343 and APAX-5343E power supply modules with 72W output power. They have passed Energy Star compliance and provide a power transmission efficiency of over 88% from AC input to DC output, providing power for more APAX modules. The APAX-5343 and 5343E have also passed UL 508 certification showing that they are suitable for safe operation in industrial environments. In order to protect the devices from overloading, voltage spikes and short-circuits; they include an auto-recovery mode which ensures that the APAX power supply will continue to work normally.


Specification

APAX-5343E-AE Specs

General/Temperature (Operating)0 ~ 50° C (mounted vertically)
General/MountingDIN-rail, Wall mount (panel mount)
General/Temperature (Storage)-20 ~ 75° C
General/CertificationsCE, FCC class A, UL 508, Energy Star
General/Dimensions75 x 151 x 115 mm
General/Relative Humidity5 ~ 95% (non-condensing)
General/Enclosure HousingPC
Protection/Isolation ProtectionIn : 42 VDC, Out : 42 VDC
Protection/Output Over Voltage Protectionshutdown as approximate 25 ~ 27 VDC, latch off mode
Protection/Over Load Protectionauto-recovery mode
Protection/Short Circuit Protectionauto-recovery mode
Input/Rated Voltage115/230 VAC
Input/Voltage Range90 ~ 264 VAC
Input/Rated Current1.5 A (at rated load)
Input/Rated Frequency50/60 Hz
Input/Inrush Current Limit< 50 A
Output/Output Power72 W
Output/Power Lossabout 8 ~ 9 W (at rated load)
Output/Efficiency> 88% (at rated load)
Output/Rated Voltage24 VDC
Output/Rated Current3 A
Output/Output Current Limit3.5 ~ 4.3 A
Output/Residual Ripple< 240 mVpp
Output/Startup Delay< 3 second
Output/Voltage Rise60 ms (typical)
