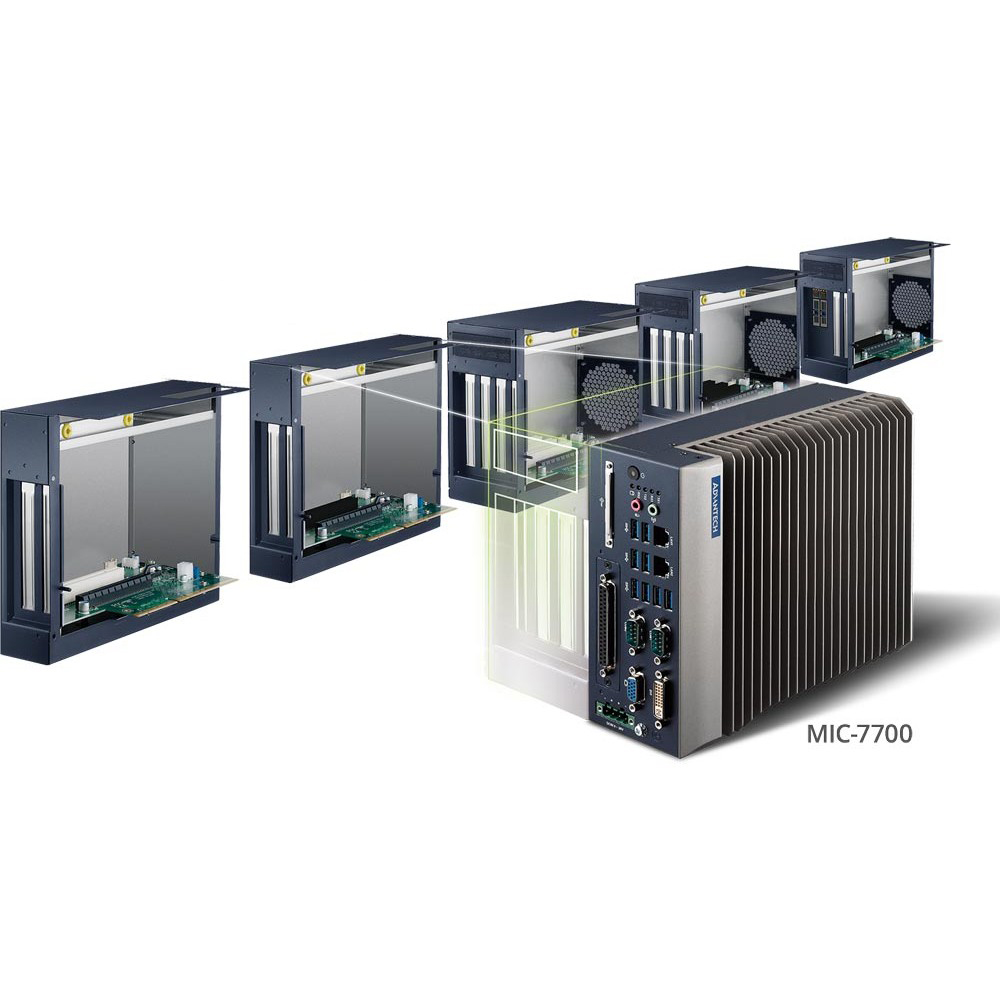

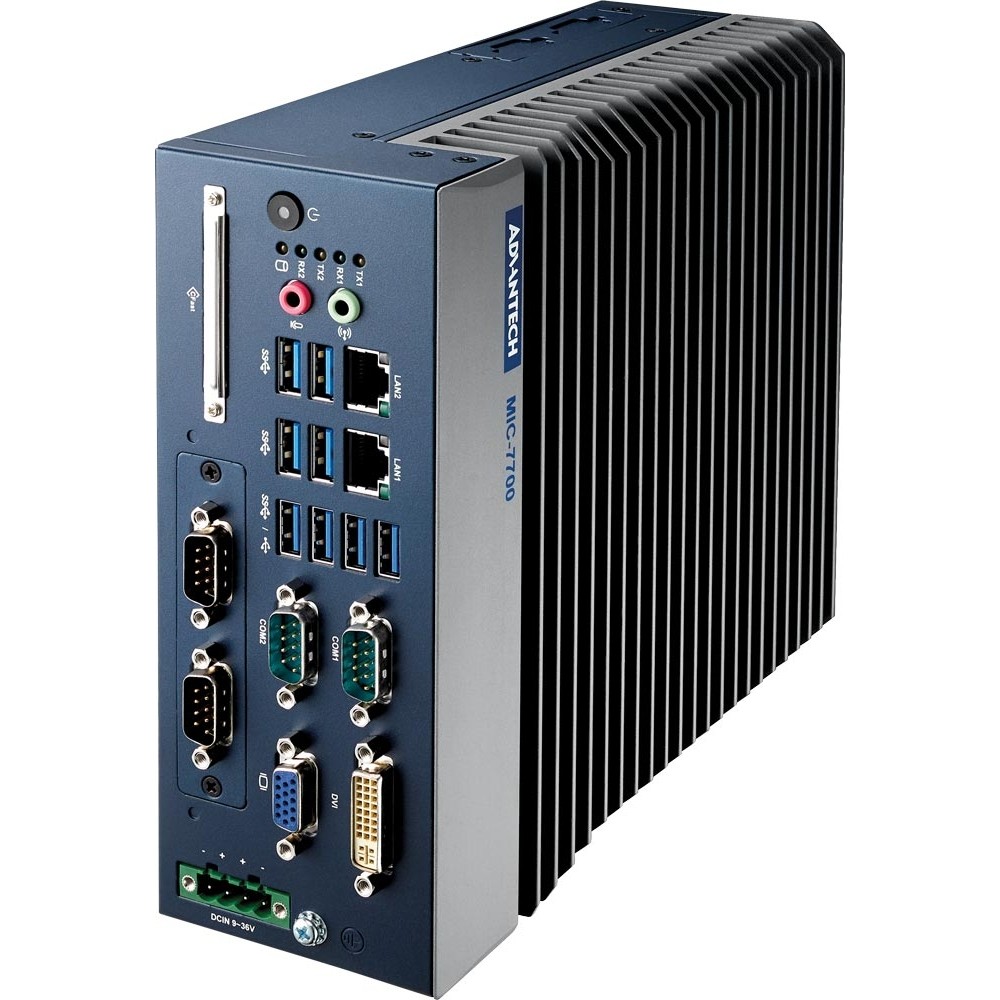

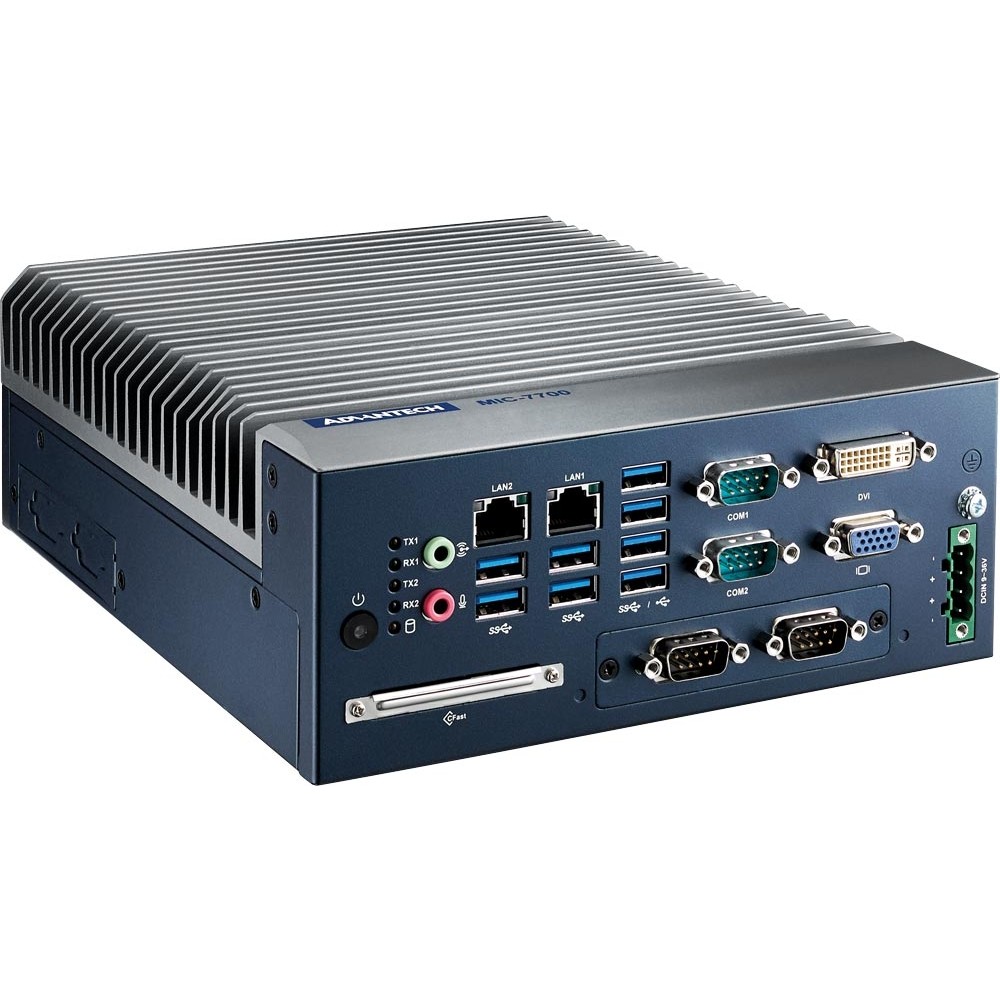

ADVANTECH - MIC-7700Q-00A1



ADV Q170 VGA+DVI 4COM 8 USB3.0 SYSTEM

Description

Advantech MIC-7700Q-00A1 Intel 6 / 7th Generation Core i Desktop Compact Fanless System With 2X RS-232/422/485, 4X RS232 Serial Ports (With Expansion cable)


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/all-in-one-barebones-brand-system/mic-7700q-00a1;

Advantech MIC-7700Q-00A1 Intel 6 / 7th Generation Core i Desktop Compact Fanless System With 2X RS-232/422/485, 4X RS232 Serial Ports (With Expansion cable)

Intel® 6th/7th Generation Core i Desktop CPU (LGA1151) with Q170 chipset
2 x RS-232/422/485 and 4 x RS232 serial ports (with expansion cable)
1 x 2.5" HDD, 1 x CFast, 1x mSATA and 1 mini-PCIe with SIM
Supports 2 LAN, Isolation COM, 32-bit GPIO modules
2 x GigaLAN and 8 x USB 3.0
VGA and DVI output
Supports Advantech’s i-module, SUSIAccess, and embedded software APIs
9 ~ 36 V DC input power range
Wide operating temperature (-10°C ~ 50°C )

Specifications:
Processor:
CPU: Intel 6th/7th Generation Core i3/i5/i7 (LGA1151)
Chipset: Intel Q170
Core number: 4/2 core
Bios: AMI 128Mbit SPI Flash

Memory:
Max capacity: 32GB (16GB per DIMM)
Socket: 2X 260-pin SO-Dimms
Technology: Dual Channel DDR4-2133Hz

Storage:
HDD: 1x internal 2.5” HDD/SSD bay
CFast: 1
mSATA: 1

Graphics:
Graphic interface: VGA + DVI
Chipset integrated: Intel HD Graphic 530/510, support DirectX 12

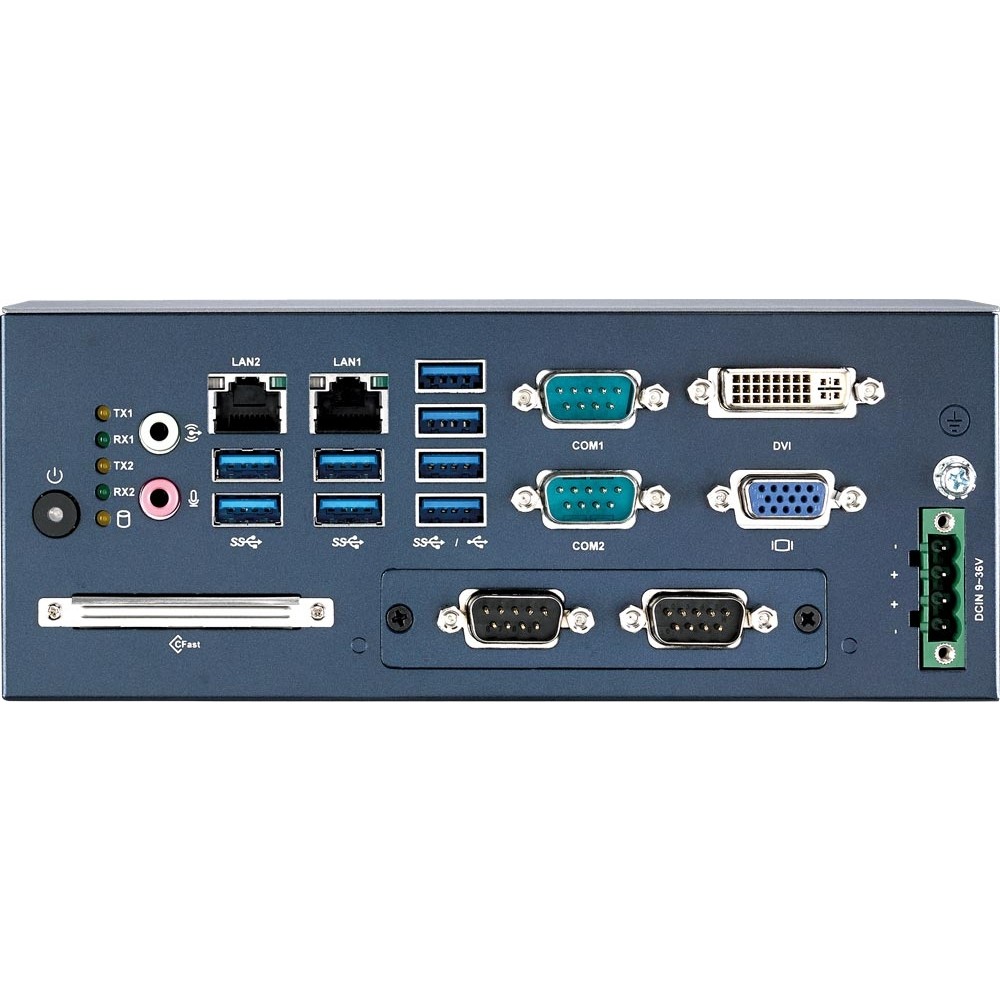

Front I/O interface:
USB3.0: 8
Audio Jack: 1x Line-Out, 1x Mic In.
Serial port: 2xRS232/422/485; 2xRS232

Ethernet:
Interface: 2x RJ45
Controller: LAN1: Intel I219LM, LAN2: Intel I210IT

Physical Characteristics:
Dimensions: 78 x 192 x 230 mm
Weight: 2.8g
Desktop/Wall mount

-Weight: 4000g
-Dimensions: (L)34 x (W)34 x (H)19cm

What's in the box:
-1x ADV MIC-7700Q i Desktop Compact Fanless System
