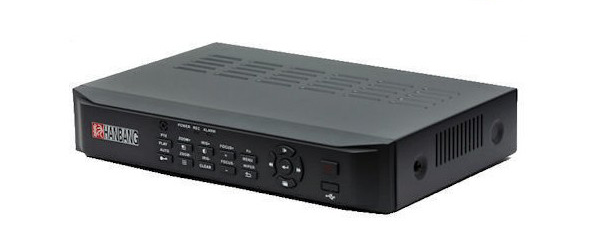

HANBANG - IS-HB7116X3-LH



HANBANG 16CH H.264 DVR WITH 2CH.AUDIO

Description

HANBANG 16CH H.264 DVR WITH 2CH.AUDIO 1HDD, ALARM, RS485 WITH HDMI, FULL CH.960H RECORDING


Specification

Hanbang H.264 16CH DVR

8/16 channel 960H/FD1 video input 1U DVR
Support 1 HDD, HDD Group, HDD R/W Control, Max 8T Each
8/16 full channel realtime playback
Support Icon Interface, User Friendly & Easy-Operate
Support Snapshot, Record Lock, Record Cutting, AVI Backup
Quick Backup when Playback
Support 3G Network Access
Max 8 Network Accessing Users
Support Eliminating Bad Disk, HDD Record Storage Group, HDD R/W Control
Support HDMI/VGA/BNC Simultaneous Output
Support PTZ, Manual Alarm, Alarm In/Out
Support CMS, Web View and Mobile View

Model: 7116X3-LH
Housing: 1U
Operation System Embedded LINUX

Video:
Compression: H.264
Input: 16*BNC
Ouput: HDMI+VGA+CVBS
Dual Stream: Support

Audio:
Compression: G.771A
Input: 2*RCA
Ouput: 1*RCA
Bidirectional Talk: 3.5mm MIC Input Interface

Alarm:
Input: 4ch
Output: 1ch

Preview:
Resolution: FD1: PAL(704×576), NTSC(704×480)/ 960H: PAL(928×576), NTSC(928×480)/ VGA:1920*1080
Display: 1ch/ 4ch/ 8ch/ 9ch/ 12ch/ 16ch
Sequence: Yes
Privacy Masking: 4 zones Maximum, On DVR

Recording:
Resolution: 16*D1, PAL 400 FPS / NTSC 480FPS
Recording mode: Manual, Schedule, Motion, Alarm
Recording Quality: CBR, VBR
Recording Interval: Pre-record: 5-30 sec, Post-record: 0-180 sec

Playback:
Channel: 4ch
Search Mode: Time,Date,Record Mode
Privacy Masking: 4 zones Maximum

Network:
Connection Way: Support 3G
Remote Operation: WEB ( IE, Chrome, Firefox, Safari)
Email: Test and send
Mobile: Support (IPhone, Andorid, Ipad)
Backup: USB devices & Network download
HDD: 2 HDD(Max support 4TB each)

External Interface:
Network Interface: 1 RJ-45 10/100M/1000M adaptive Ethernet Interface
USB Interface: 2 Interfaces ( Mouse control & Backup)
Auxiliary Interface: 1 RS-485(HDX)

General:
Power supply: DC 12V
Power Consumption: 24W
Working temperature: -10°C~+55°C
Size: 324.00mm x 53.70mm x 256.8mm
