Specification

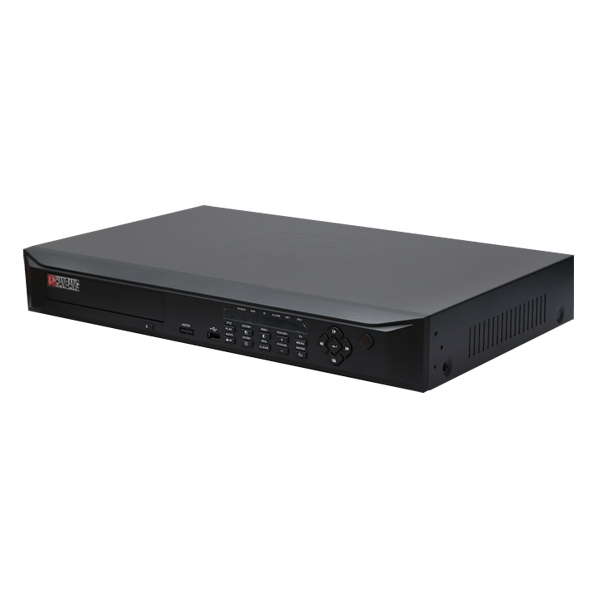

Hanbang 32CH Standalone DVR
32Ch BNC video input
4ch RCA Audio input
4CH Alarm input , 1CH Alarm Output
Recording Resolution:32CH CIF
Playback 4CH simultaneously
HDMI,VGA,CVBS video outputs
Support DHCP, DDNS, 3G, PPPOE
Support Remote control and Bluetooth mouse
Support 2PC SATA HDD Up to 2TB
Create Back file with AVI and DAT format
Support PTZ-Digital Zoom-Backup and upgrade with USB support
Support External Hard and External CD/DVD writerand Flash memory
Support Ipad , Iphone ,Android
Support Image transmission and show in IE,Chrome,Firefox,Safari
and CMS software
Specifcations:
Model: HB7032XT
Housing: 1.5U
Operation System: Embedded LINUX
Video:
Compression: H.264
Input: 32ch BNC(1 Vp-p,75 Ohm)
Output: 1 BNC, 1 VGA
Dual Stream: Support
Audio:
Compression: G.711A
Input: 4ch BNC
Output: 1ch BNC
Bidirectional Talk: 3.5mm MIC Interface
Alarm:
Input: 4
Output: 1
Preview:
Resolution: BNC:D1, 704x576(PAL)/704x480(NTSC)/ VGA: 1280X1024
Display: 1ch/ 4ch/ 9ch/ 16ch/ 32ch
Sequence: Yes
Privacy Masking: 4 zones Maximum, On DVR
Recording:
Resolution: 32 CIF
Recording Mode: Manual, Schedule, Motion, Alarm
Recording Quality: CBR, VBR
Recording Interval: Pre-record: 5~30 sec./ Post-record: 0~180sec.
Playback:
Channel: 1ch/ 4ch
Search Mode: Time, Date, Record Mode, Smart search
Privacy Masking: 4 zones Maximum, On DVR and PC
Network:
Remote Operation: WEB( IE, Chrome, Firefox, Safari)
Email: Test and send
Mobile: Support: (IPhone, Andorid, Ipad/ Windows Mobile, Symbian, BlackBerry)
Backup: USB devices & Network download
HDD: 2 HDD(Max support 2TB each)
External Interface:
Network Interface: 1 RJ45 10M/100M adaptive Ethernet Interface
USB Interface: 2 interfaces( Mouse control & Backup)
Auxiliary Interface: 1 RS-485
General:
Power Supply: 110±20% V,60±3% Hz
Power Consumption(Without HDD): 30W
Working Environment: -10~+45 Degree Celcius / 15%~85%RH
Dimension: 440mm*290mm*66mm(W×D×H)
Weight: 3KG(without HDD)
