Specification

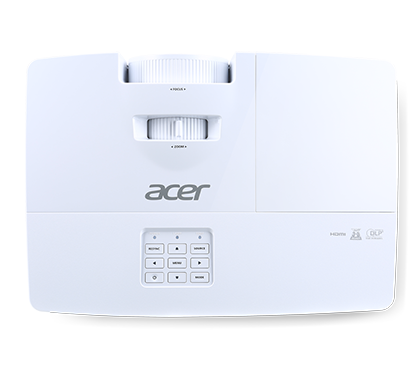

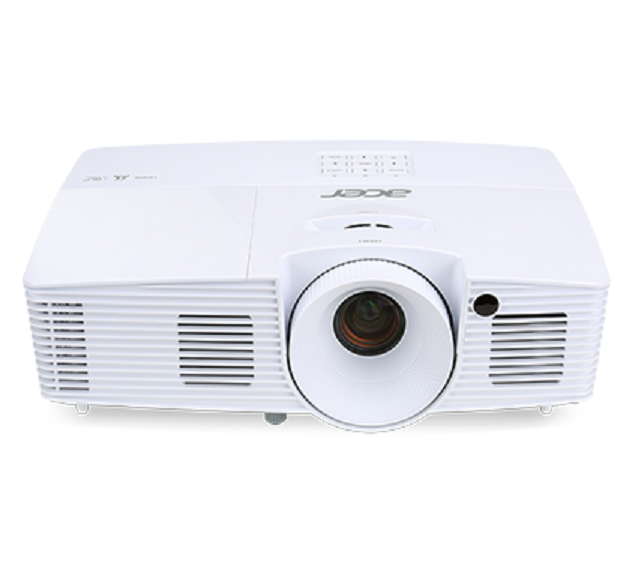

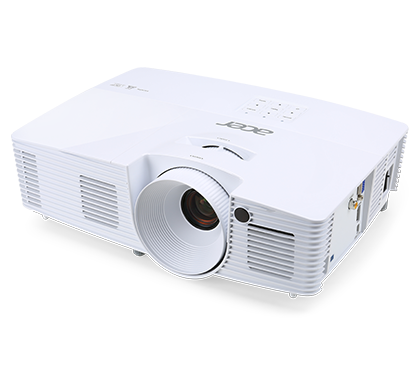

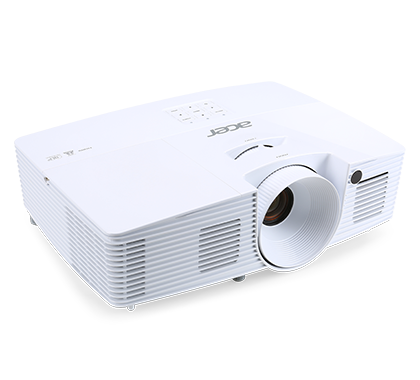

ACER X125H PROJECTOR
Specifications:
Image:
Native Resolution: 1024 x 768
Maximum Resolution: 1920 x 1200
Standard Mode Brightness: 3300 lm
Native Aspect Ratio: 4:3
Compatible Aspect Ratio: 16:9
Contrast Ratio: 20,000:1
Digital Zoom: 2x
Vertical Keystone Correction: -40/+40
Maximum Vertical Sync: 120 Hz
Maximum Horizontal Sync: 100 Hz
Minimum Vertical Sync: 24 Hz
Minimum Horizontal Sync: 15 Hz
Colour Support: 1.07 Billion Colors (30-bit)
Projection Lens:
Throw Ratio: 1.94 to 2.16 (1295.40 mm@2000 mm)
Lens Type: Manual Focus, Zoom
Minimum Lens Aperture: F/2.41
Maximum Lens Aperture: F/2.53
Minimum Focal Length: 21.85 mm
Maximum Focal Length: 24.01 mm
Minimum Diagonal Image Size: 685.80 mm
Maximum Diagonal Image Size: 7.62 m
Minimum Projection Distance: 1.20 m
Maximum Projection Distance: 11.80 m
Optical Zoom: 1.1x
Lamp:
Lamp Type: OSRAM
Number of Lamps: 1
Lamp Power: 195 W
Normal Mode Lamp Life: 5000 Hour
Economy Mode Lamp Life: 6000 Hour
ExtremeEco Mode Lamp Life: 10000 Hour
Interfaces:
HDMI: Yes
Number of USb Ports: 1
USB: Yes
USB Connector: Type: Mini-B
Number of VGA Inputs: 1
VGA In: Yes
Number of Audio Inputs: 1
Audio Line In: Yes
Total Number of HDMI Ports: 1
Technical Information:
Projectio System: DLP
Projection Method: Ceiling, Front, Rear, Rear Ceiling
Video Compatibility: EDTV, HDTV, NTSC, PAL, SDTV, SECAM
Computer Compatibility: Mac PC, Windows PC
Audio:
Number of Speakers: 1
Speaker Output Power: 3 W
Speaker Output Mode: Mono
Power Description:
Power Supply: 100 V ACĀ¬240 V AC
Input Voltage: 120 VAC, 230VAC
Operating Power Consumption: 235 W
Operating Power Consumption (Eco Mode): 195 W
Physical Characteristics:
Fan Noise: 28 dB Approximate Economy Mode, 31 dB Approximate Standard Mode
Temperature: 0 C to 40 C
Humidity: 80% Maximum Relative Humidity
Form Factor: Ceiling Mountable
