Specification
D-Link 8Port Gigabit Switch
Key Features:
Built-in D-Link Green Technology
Inexpensive Gigabit solution for Home/SOHO

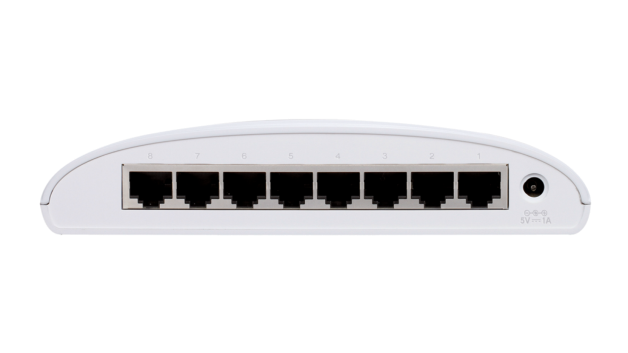

Eight 10/100/1000 Mbps Gigabit ports
16 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Supports 9,000 Byte Jumbo Frames
Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
Supports Cable Diagnostics Function
RoHS compliant
Plug-and-play installation
Standards:
IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol: CSMA/CD
Data Transfer Rates:
Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex)\
Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)
Topology: Star
Network Cables:
10BASE-T: UTP CAT 3, 4, 5/5e (100 m max.); EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.); EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange: Auto MDI/MDIX adjustment for all ports

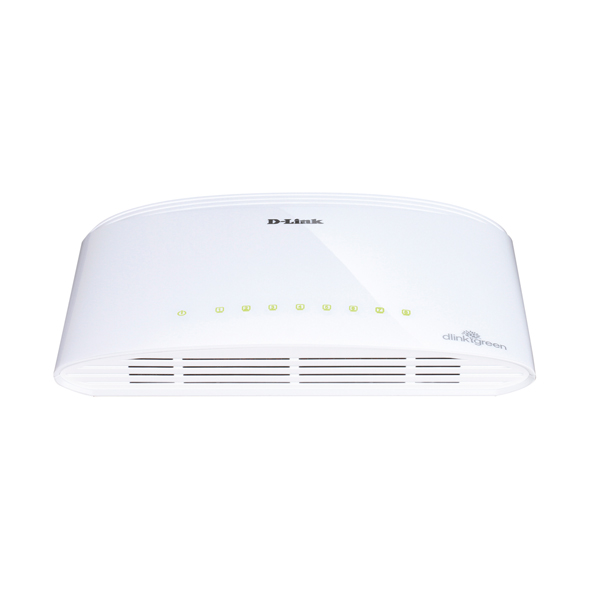

LED Indicators:
Per port: Link/Activity/Speed
Per device: Power
Transmission Method: Store-and-forward
MAC Address Table: 4K entries per device
MAC Address Learning: Automatic update
Packet Filtering/Forwarding Rates:
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer: 192 KBytes per device
DC Input: External 5 V/1 A Power Adapter
Power Consumption:
Power On (Standby): DC input: 0.53 watts; AC input: 0.77 watts
Maximum: DC input: 3.695 watts; AC input: 5.14 watts
Heat Dissipation:
Power On (Standby): 2.63 BTU/h
Maximum: 17.58 BTU/h
MTBF: 685,419 hours
Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -10 to 70 °C (14 to 158 °F)
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
Device Dimensions (W x D x H): 164.5 x 112.4 x 35.0 mm (6.5 x 4.5 x 1.4 inches)
Certifications:
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
LVD
