Specification

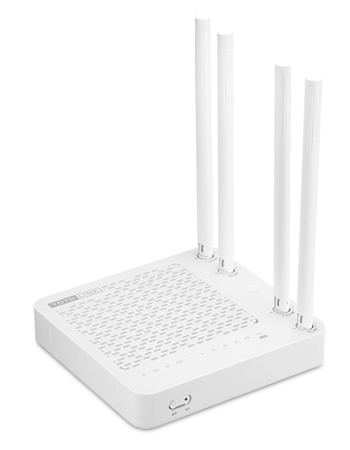

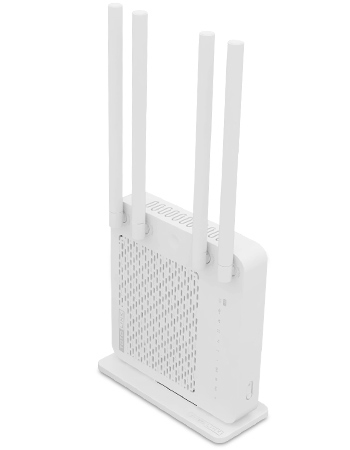

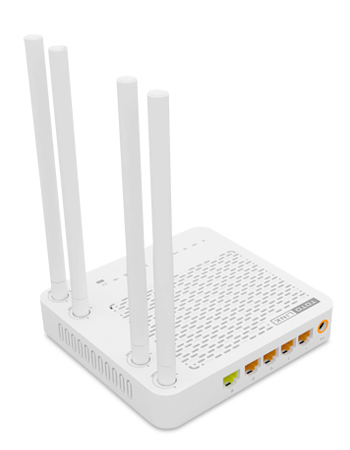

TOTOLINK A850R
- Extremely High Speed Experience
- Wide Coverage
- Multiple Wireless Network for Access Control
- Heat Release Design
- VLAN for Amazing IPTV Experience
Features:
- Complies with 802.11ac/a/b/g/n standards
- Delivers 300Mbps data rate on 2.4GHz and 867Mbps on 5GHz simultaneously
- Advanced MIMO technology enhances the throughput and wireless coverage
- High output power is perfect for long distance wireless transmission
- Supports
DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security
- Connects to secure network easily and fast using WPS
QoS:
- Bandwidth Control based on IP/MAC
- Supports IP, MAC, URL filtering and Port Forwarding
- Universal repeater and WDS function for easy WiFi extension
- Multi-SSID allows user to create multiple SSIDs according to their needs
- Supports VLAN function for IPTV and other internet services
Specifications:
Hardware Features:
Interface:
- 4 *100Mbps LAN Ports
- 1 *100Mbps WAN Port
Power Supply: 12V DC / 1A
Button:
- 1 *RST Button
- 1*WPS Button
LED Indicators:
- 1 *Power
- 1 *CPU
- 1 *5G Wireless
- 1 *2.4G Wireless
- 4 *LAN
- 1 *WAN
Antenna:
- 2 *5dBi Fixed Antennas (2.4G)
- 2 *5dBi Fixed Antenna (5G)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Wireless Features:
Standards:
- IEEE 802.11ac
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
RF Frequency: 2.4GHz/5GHz
Data Rate:
2.4GHz: Up to 300Mbps
5GHz: Up to 867Mbps
Wireless Security:
- 64/128-bit WEP
- WPA/WPA2
- WPA-PSK/WPA2-PSK (TKIP/AES)
EIRP:
- < 20dBm (For countries using CE standard)
- < 27dBm (For countries using FCC standard)
Channels:
2.4GHz: 1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
5GHz: China/America:5745-5805, Europe:5500-5700, Brizal:5180-5805
Modulation Type:
- DBPSK
- DQPSK
- CCK and OFDM (BPSK,QPSK,16-QAM/64-QAM)
Reception Sensitivity:
270M: 64 dBm@10% PER
135M: 61 dBm@10% PER
54M: 68 dBm@10% PER
11M: 85 dBm@8% PER
6M: 88 dBm@10% PER
1M: 90 dBm@8% PER
Software Features:
Status: System Status
Statistics: System Log
Setup Wizard: Setup Wizard
Quick Setup: Quick setup
TCP/IP Settings: LAN Interface
WAN Interface:
- DHCP Client, Static IP, PPPoE, PPTP and L2TP
- VLAN Settings
Wireless:
- Basic Settings (including Band, Mode, SSID, Multiple APs, etc.)
- Security Settings
- Site Survey
- WDS
- Advanced Settings
- Access Control
- WPS
- Schedule
Route Setup:
- Static Route
- Routing Table
Firewall:
- IP Filtering
- Port Filtering
- MAC Filtering
- URL Filtering
- Port Forwarding
- DMZ
- Denial- of- Service
- NAT Mapping
Management:
- Upgrade Firmware
- Save/Reload Settings
- Web Login Password
- TR-069 config
- Date and Time
- Reboot Router
- Reboot Schedule
Advanced:
- DDNS
- QoS
- Operation Mode
- SSH Server
