D-LINK - LA-DL-DSL2740U

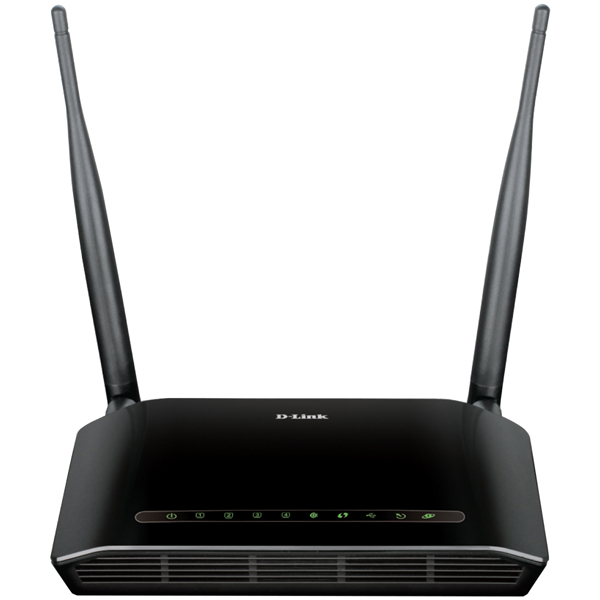

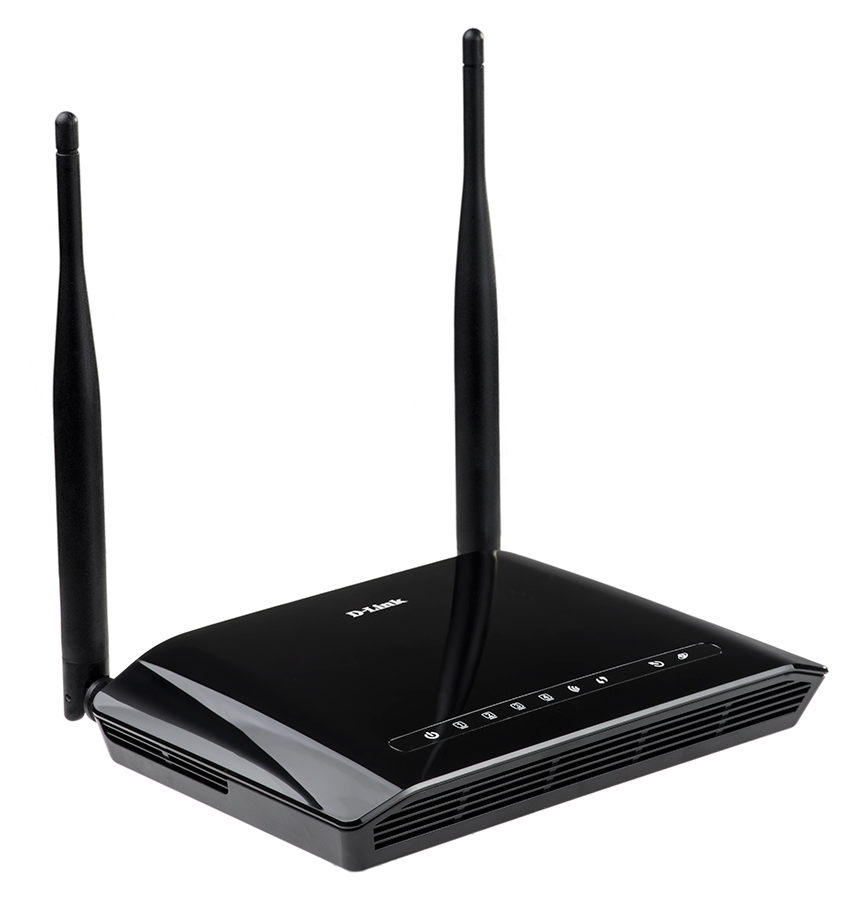

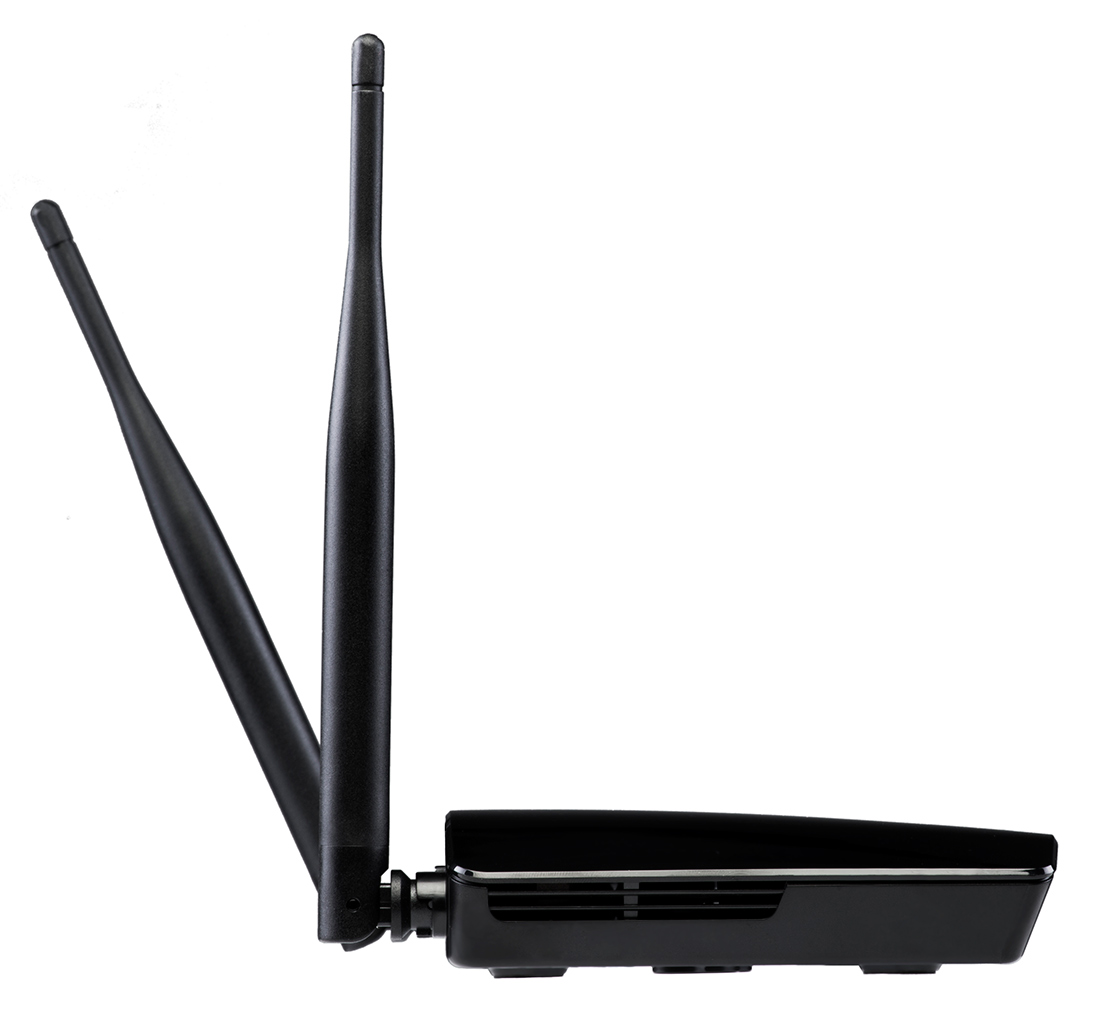

D-LINK WIRELESS N300 ADSL2+ 4PORT ROUTER

Description

D-LINK DSL2740U, The DSL-2740U Wireless N ADSL2+ 4-Port Wi-Fi Router is a versatile, high-performance router for home and the small office. With integrated ADSL2/2+, supporting download speed up to 24Mbps, firewall protection,Quality of Service (QoS)


Specification

D-Link N300 Wireless ADSL2+ 4Port Router

Specifiation:
General:
ADSL2: 12 Mbps downstream, 1 Mbps upstream
Wireless speed: up to 54 Mbps (802.11g), 300 Mbps (802.11n)
G.dmt: 8 Mbps downstream, 832 Kbps upstream
G.lite: 1.5 Mbps downstream, 512 Kbps upstream
Frequency range: 2.4 GHz to 2.4835 GHz, EIPR: 18.7dBm
Antennas: Dual 2x2 built-in MIMO antennas
ADSL2+: 24 Mbps downstream, 1 Mbps upstream
802.11b/g/n standards
ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)
VC and LLC based multiplexing
PPP over Ethernet (PPPoE)
PPP over ATM (RFC 2364)
ITU-T I.610 OAM F4/F5
ATM Adaptation Layer Type 5 (AAL5)
ATM QoS (Traffic Shaping)
Bridged or routed Ethernet encapsulation

Device Interfaces:
RJ-11 ADSL port
4 RJ-45 10/100BASE-TX Ethernet ports with auto MDI/MDIX
Factory reset button
Built-in 802.11n wireless LAN
WPS button
Wireless on/off switch (optional)
Power on/off switch

ADSL Standards:
Multi-mode
ANSI T1.413 Issue 2
ITU G.992.1 (G.dmt) Annex A
ITU G.992.2 (G.lite) Annex A
ITU G.994.1 (G.hs)

ADSL2 Standards:
ITU G.992.3 (G.dmt.bis)
Annex A/L/M, ITU G.992.4 (G.lite.bis) Annex A

Router Features:
WAN/LAN Switchable Port (optional)
NAT & NAPT
DHCP server/client/relay
Static Routing, RIP v.1, v.2
Universal Plug and Play (UPnP) compliant
Dynamic Domain Name System (DDNS)
Virtual server
SNTP, DNS proxy and IGMP proxy
Built-in NAT firewall
Stateful Packet Inspection (SPI)
DoS attacks prevention

Security:
IGMP
PVC/VLAN port mapping (bridge mode) 64/128 bits
WEP data encryption
WPA/WPA2 (Wi-Fi Protected Access) security
MAC address-based access control
WPS
Packet filtering (IP/ICMP/TCP/UDP)
Supports IPv6
