Specification

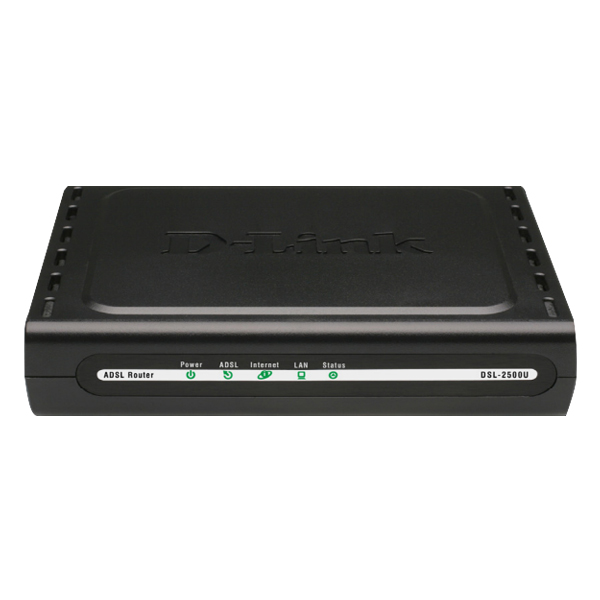

D-Link 1Port ADSL Router
Features:
Embedded wireless HIGH-SPEED ADSL2+ INTERNET CONNECTION Latest ADSL2+ standard provides Internet tranmission of up to 24Mbps
Works with all major Internet Service Providers, simple installation
Built-in ADSL modem, QoS and Firewall protection, all in one single palm-sized box LAN technology for high-speed wireless connection
Complete compatibility with 802.11b/g/n wireless devices
Specification:
Data Rates:
Downstream: Up to 24Mbps
Upstream: Up to 3.5Mbps
Compliance:
TR-067 Interop Performance
TR-069 Compliant with ACS
ADSL Standards:
Multi-mode:
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt) Annex A/C/I
ITU-T G.992.2 (G.lite) Annex A/C
ITU-T G.994.1 (G.hs)
ADSL2 Standards:
ITU-T G.992.3 (G.dmt.bis) Annex A/J/K/L/M
ITU-T G.992.4 (G.lite.bis) Annex A
ADSL2+ Standards: ITU-T G.992.5 Annex A/L/M
ATM/PPP Protocols:
ATM Forum UNI3.1/4.0 PVC - Up to 8 PVCs
PPP over ATM
PPP over Ethernet
Network Protocols and Features:
Ethernet to ADSL Self-Learning Transparent Bridging
Internet Control Message Protocol (ICMP)
IP Static Routing
Routing Information Protocol (RIP, RIPv2)
Network Address Translation (NAT)
Virtual Server, Port Forwarding
Dynamic Host Configuration Protocol (DHCP)
DNS Relay, DDNS
IGMP Proxy
Simple Network Time Protocol (SNTP)
NAT ALGs: MSN Messenger, FTP, CUSEEME, H323_Q931 (Netmeeting etc.), H323_RAS, ICQ, etc.
VPN: Multiple IPSec/PPTP/L2TP Pass-through
Firewall:
Built-in NAT
MAC Filtering
Packet Filtering
Stateful Packet Inspection (SPI)
Denial of Service Prevention (DoS)
DMZ
QoS:
Port-based Priority
802.1p (0~7) Priority
Configuration and Management:
Web-based GUI Configuration
ADSL/ADSL2/ADSL2+ Manual Selection and Auto Fallback
Auto VPI/VCI Detection
Configuration Backup and Restore
Ports:
ADSL Port (RJ-11)
1 10/100 Ethernet Port (RJ-45)
LEDs:
Power
Status
DSL
LAN
Internet
Temperature:
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 149°F (-20°C to 65°C)
Humidity: 5% to 95% Non-condensing
Certifications:
FCC Class B
CE
RoHS
CSA
Dimensions:
Item (WxDxH): 7.6" x 5.9" x 1.3"
Packaging (WxDxH): 10.8" x 8.2" x 2.7"
Weight:
Item: 0.7 lbs
Packaging: 2.1 lbs
Minimum System Requirements:
Subscription with DSL Internet Service Provider
Computer with a Network Interface Card
