Specification

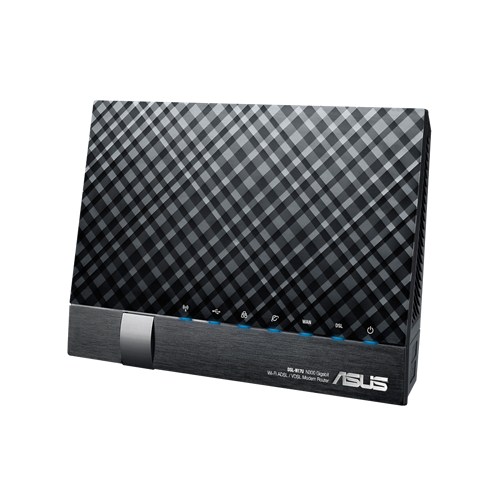

Asus DSL-N17U Wireless-N300 Gigabit ADSL/VDSL Modem Router
Dual-purpose wireless router and DSL modem with both Ethernet and DSL internet connection (WAN) ports
Compatible with ADSL2/2+, ADSL, VDSL2, fiber and cable services for complete future-proofing
Gigabit Ethernet ports for the fastest, most reliable internet performance
Dual multi-purpose USB ports support file sharing, printer sharing and media streaming
ASUS AiCloud lets you access, sync, share and stream data from your home network to any internet-connected PC, Android or iOS device
Network Standard: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6
Product Segment:
N300 complete networking: 300 Mbps
Wi-Fi Data Rate:
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6,9,12,18,24,36,48,54 Mbps
802.11n: up to 300 Mbps
xDSL Data Rate: VDSL2/ADSL2+/ADSL2/ADSL multimode
VDSL2 Upstream: 150Mbps, Downstream: 200Mbps
ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps
ADSL2 Upstream:
3.5Mbps, Downstream: 12Mbps
Support Annex A/B/I/J/L/M
Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
VDSL2 interface compliance with ITU-T G.993.2
ITU-T G.992.1 (G.dmt), Annex A, and B Compliant
ITU-T G.992.2 (G.lite), Annex A, and B Compliant
ANSI T1.413 Compliant
ITU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
ITU-T G.993.2 Compliant, Annex A, B
ITU-T G.993.5 (Vectoring)
ATM and PTM (dual-priority)
G.998.4 (G.inp) Improved impulse noise protection
Antenna: Internal dBi antenna x 2
LED Indicator: Power, Internet, WLAN, LAN x 0, xDSL, 2.4 GHz Wi-Fi, USB x 1
Button: WPS Button, Reset Button, Power Button, Wireless on/off Button
Ports:
4 x RJ45 10/100/Gigabits BaseT for LAN
1 x RJ45 10/100/Gigabits BaseT for WAN
1 x RJ11 for xDSL
USB Ports: USB 2.0 x 2
USB Applications:
Printer Server
FTP Server
Download Master
3G/4G sharing
Operating Frequency: 2.4GHz
Operation Channel: 13 Europe (ETSI)
Memory:
128MB DDR3
128MB NAND flash
Security: 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPS support
Management:
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function
Utilities:
Download master:
Support BT, NZB, HTTP, ED2K
Support encryption, DHT, PEX and magnet link
Upload and download bandwidth control
Download scheduling
Media server:
Image: JPEG
Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
Printer Server:
Multifunctional printer support(Windows only)
LPR protocol support
VPN Support:
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
Power Adapter:
AC Input: 110 ~240 V(50~60HZ)
DC Output: 12 V/2 A
Dimensions: 147 x 205 x 66 ~ mm (WxDxH)
OS Support:
Windows® 10 , 32bit/64bit
Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® XP
Mac OS X
Linux
