Specification

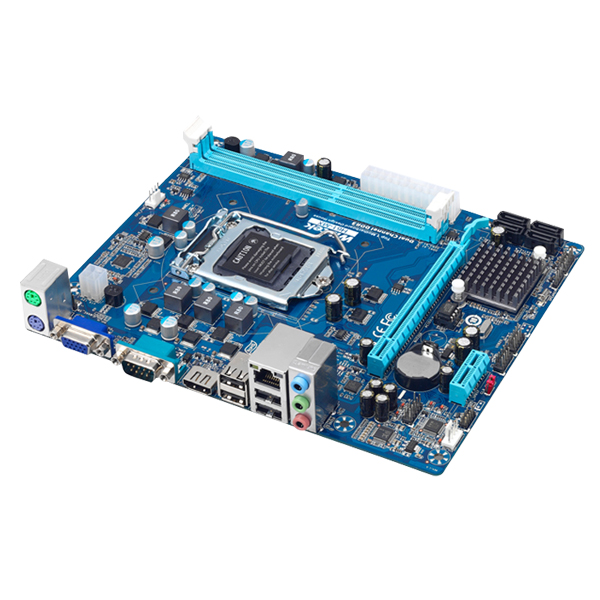

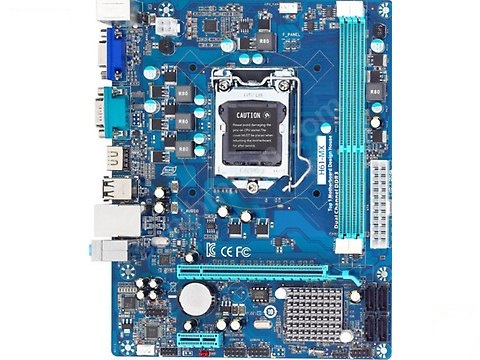

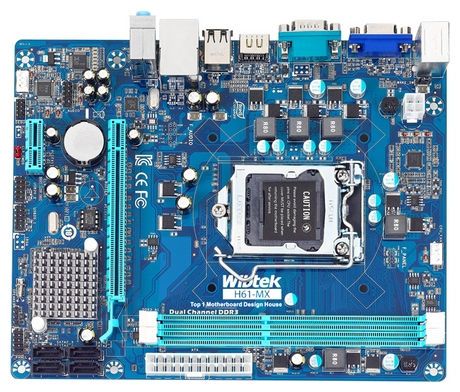

WIBTEK INTEL H61-MX
Specification:
Model Name: H61-MX
Form Factor: Micro ATX; 21.5 cm x 17.0 cm
CPU:
- Intel LGA 1155 Socket
-Support Intel Core 2nd and 3rd Generation i7/i5/i3/Pentium/Celeron in 1155-pin CPU in 1155-pin
-Support Intel 22 nm CPU
-Support Intel Hyper-Threading Technology
-Support Intel Turbo Boost 2.0 Technology
-Support Enhanced Intel SpeedStep Technology (EIST)
Chipset: Intel H6 (B3 version)
Graphics: Integrated Intel Graphics 2000/3000
-Maximum 1759MB VGA share memory (UMA)
-Support DirectX 10.1
-Support Intel Quick Sync Video Technology
-Support dual VGA output
Memory:
- 2 x DIMM Slots, DDR3 1333/1066 MHz Non-ECC, Un-buffered Memory
- Maximum 16GB Memory Size
- Support Dual Channel Memory Architecture
PCI Express 2.0 x 16: 1
PCI Express 2.0 x 1: 1
Back I/O Ports:
- 1 x D-Sub (VGA)
- 1 x HDMI
- 1 x Gigabit LAN (Optional: 1 x 10/100Mbps LAN)
- 4 x USB 2.0
- 1 x COM Optional (Default W/O)
- 3 x Audio Jacks for 6 Channel High Definition Audio
- 1 x PS/2 Mouse
- 1 x PS/2 Keyboard
Onboard Connectors:
- 1 x Intel Front Panel Connector (2 x 5 pin)
- 1 x 4-pin Speaker Connector
- 1 x Front Panel Audio Connector (2 x 5 pin)
- 2 x USB 2.0 Connectors Support 4 x USB 2.0 Ports
- 4 x SATA 3Gb/s (SATAII) Ports
- 1 x 2-pin HDMI S/PDIF-Out Connector Optional (Default W/O)
- 1 x 4-pin CPU Fan Connector
- 1 x 4-pin Chassis Fan Connector
- 1 x 24-pin ATX Power Connector
- 1 x 4-pin ATX 12V Power Connector
- 1 x 3-pin WAKE_SW Header
- 1 x WAKE_SW Jumper
- 1 x IR Connector (2 x 3 pin) Optional (Default W/O)
- 1 x Buzzer Optional (Default W/O)
- 1 x 3-Pin Clear CMOS Header
- 1 x Clear CMOS Jumper (Red)
BIOS:
- 32 Mb EFI AMI BIOS
- PnP, DMI2.5, WfM2.0, ACPI V2.0, SM BIOS V2.6
Software: Microsoft Windows 7 (64-bit and 32-bit) Drivers Microsoft Windows XP (64-bit and 32-bit) Drivers

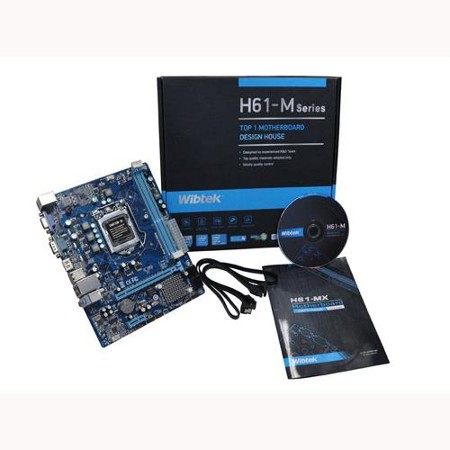

In the Box:
- Motherboard
- User Manual
- DIY Guide
- 1 x I/O Shield
- 2 x SATA Cables
- 1 x Support DVD
