Specification

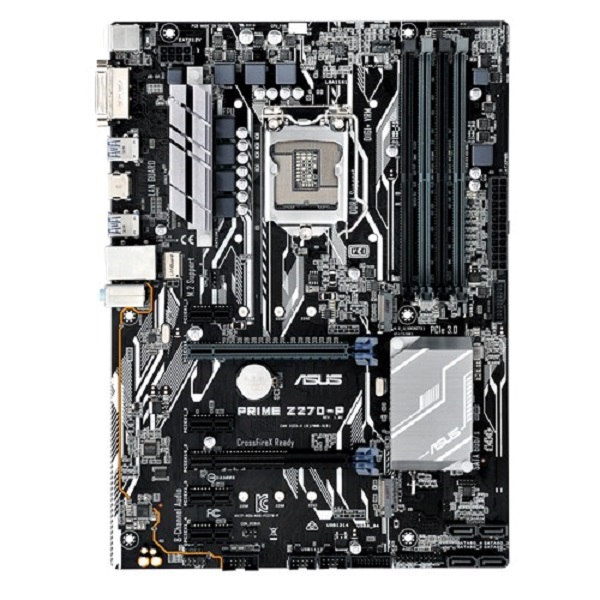

Asus Prime Z270-P Motherboard
5X Protection III: Multiple hardware safeguards for all-round protection
LED illumination: Lighting control for both PCIe slot and audio trace paths
Dual native M.2 and NVMe PCIe RAID support: Lightning-fast storage speeds
DDR4 memory support: Overclock to 3866MHz
Intel Optane memory ready: Exploit the latest high-speed storage technology
Specifications:
CPU:
Intel Socket 1151 for 7/6th Generation Core i7/5 Core/ i3 Pentium/ Celeron Proccesors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
Chipset: Intel Z270
Memory:
4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733/3600/3466/3400/3333/3300/3200/3000/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Graphic:
Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support:
HDMI/ DVI-D ports
Supports HDMI 1.4b with max. resolution 4096 x 1260 @ 24Hz/ 2560 x 1600 @ 60Hz
Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick sync Video, Clear Video HD Technology, Insider
Multi-GPU Support: Supports AMD CrossFireX Technology
Expansion Slots:
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
Storage:
2 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIEmode)
4 x SATA 6Gb/s ports, gray
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology
Intel Optane Memory Ready
LAN: Realtek RTL8111H
Audio:
Realtek ALC887 8Channel High Definition Audio CODEC
Jack-detection, Front Panel Jack-retasking
USB Ports:
Intel Z270 Chipset:
8 x USB3.0 ports (4 at back panel, blue, Type-A, 4 at mid-board)
6 x USB2.0 ports ( 2 at back panel, Type-A, 4 at mid-board)
Back I/O Ports:
1 x PS/2 keyboard/mouse
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port
4 x USB3.1 Gen 1 Type-A
2 x USB 2.0
3 x Audio jacks
Internal I/O Ports:
2 x USB3.1 Gen 1 connectors support additional 4 USB3.1 Gen 1 ports
2 x USB2.0 connectors support additional 4 USB2.0 ports
2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
4 x SATA 6Gbps connectors
1 x CPU Fan connector
2 x Chassis Fan connectors
1 x S/PDIF out header
1 x 24pin EATX Power connector
1 x 8pin ATX 12V Power connector
1 x Front panel audio connector
1 x Clear CMOS jumper
1 x System panel connector
1 x COM port header
Operating System:
Windows 10 64-bit
Windows 8.1 64-bit
Windows 7 32-bit
Windows 7 64-bit
Accessories:
User's manual
I/O Shield
2x SATA 6Gbps cables
2x M.2 screws
1x SCD
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favourites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD memory information
Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE
