Specification

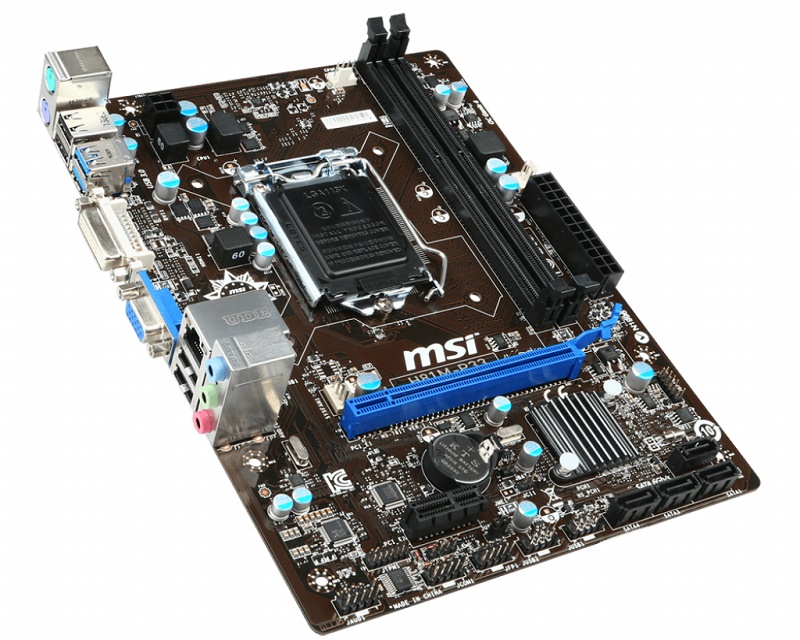

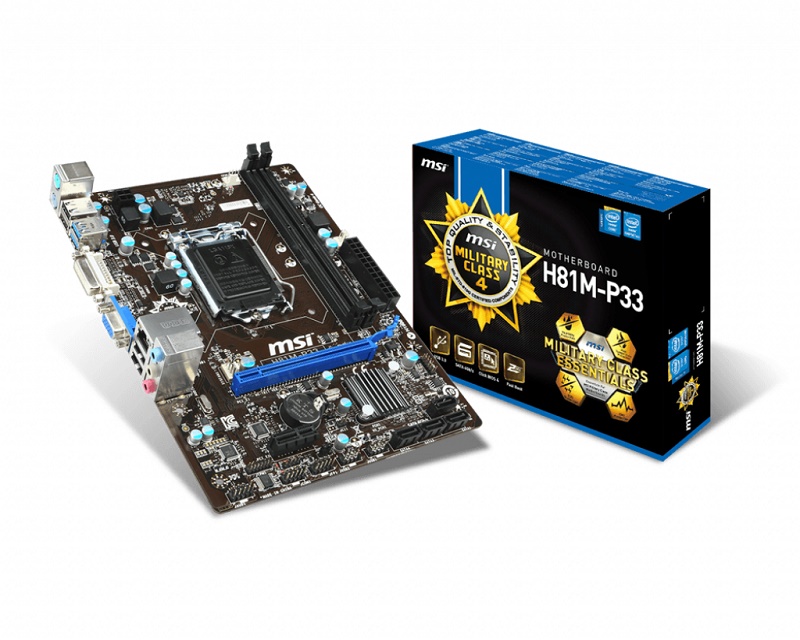

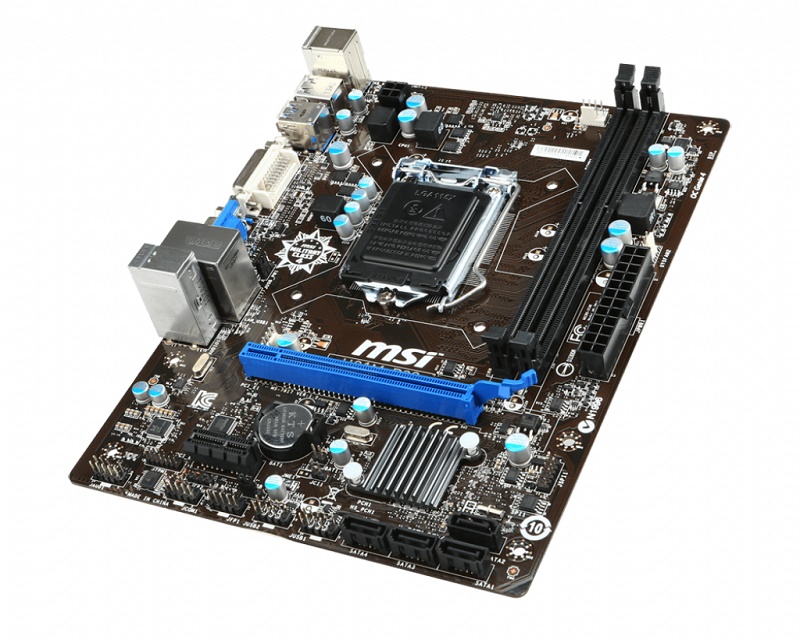

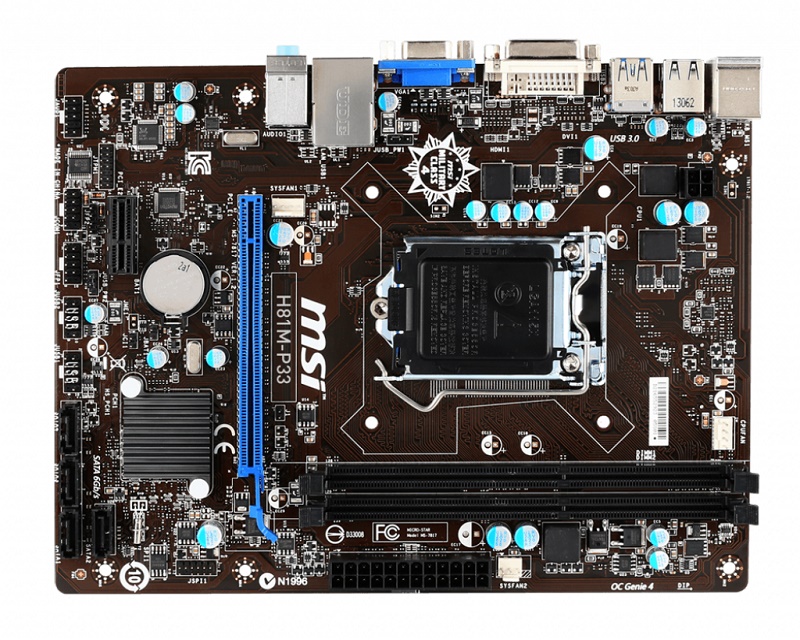

MSI H81M-P33 Motherboard
Supports 4th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socket
Supports DDR3-1600 Memory
USB 3.0 + SATA 6Gbps
Military Class 4: Top & Stability
Military Class Essentials: Total Protection for Military Class Motherboards
OC Genie 4: Overclock in 1 Second
Click BIOS 4: Easily Fine-tune Your System
Command Center: Control & Customize Your PC Settings
Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
M-Flash: Simply Update & Backup Your BIOS
Live Update 5: Easily Update The Latest BIOS & Drivers
Socket: 1150
CPU (Max Support): 4th Generation Intel Core i7/5/3/ Pentium/Celeron processors for LGA 1150 socket
Chipset: Intel H81 Express Chipset
Main Memory:
Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
Supports Dual-Channel mode
Slots:
1x PCIe 2.0 x16 slot
1x PCIe x1 slot
On-Board SATA:
SATAIII controller integrated in Intel H81 chipset
Up to 6Gbps transfer speed
Supports two SATAIII ports (SATA1¬2) by H81
SATAII controller integrated in Intel H81 chipset
Up to 3Gbps transfer speed
Supports two SATAII ports (SATA3¬4) by H81
USB: 2x USB 3.0 ports on the back panel
Audio:
Chip integrated by Realtek ALC887
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 spec
LAN: Supports LAN 10/100/1000 Fast Ethernet by Realtek RTL8111G
Internal I/O Connectors:
1x ATX 24-Pin power connector
1x 4-pin ATX 12V power connector
2x SATAIII connectors
2x SATAII connectors
2x USB 2.0 connectors
1x Serial port connector
1x Trusted Platform Module header
1x Chassis intrusion connector
1x Front Panel Audio connector
Back Panel I/O Ports:
1x PS/2 keyboard port
1x PS/2 mouse port
4x USB 2.0 ports
2x USB 3.0 ports
1x RJ45 LAN Jack
1x 3-in-1 audio jack
1x Graphics card port
1x DVI-D port
Dimension: 22.6 cm x 17.3 cm Micro-ATX Form Factor
Mounting: 6 mounting holes
