KINGSTON - D3-KHX24C11K4/16X



KINGSTON HYPERX GENESIS 16GB (4GB X 4)

Description

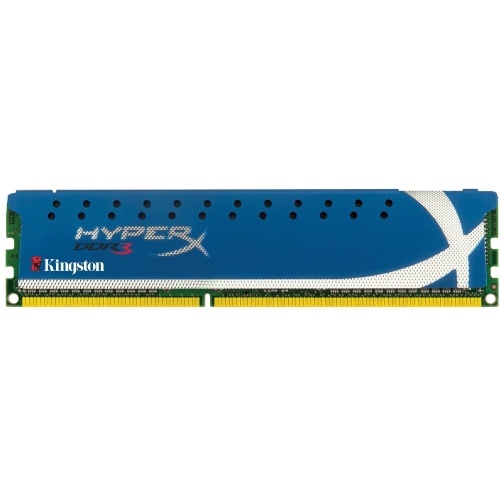

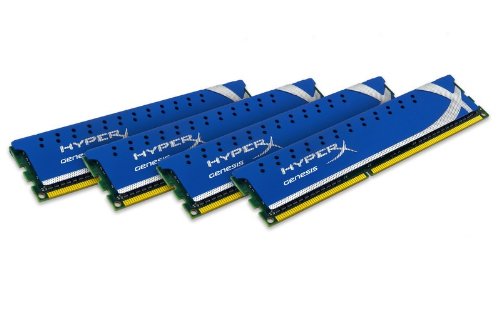

HyperX KHX24C11K4/16X is a kit of four 512M x 64-bit (4GB) DDR3-2400 CL11 SDRAM (Synchronous DRAM), 1Rx8 memory modules, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel® XMP (Extreme Memory Profiles).


Specification

Kingston HyperX Genesis 16GB DDR3-2400 DIMM

Features:
JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply
VDDQ = 1.5V (1.425V ~ 1.575V)
667MHz fCK for 1333Mb/sec/pin
8 independent internal bank
Programmable CAS Latency: 9, 8, 7, 6
Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
Programmable CAS Write Latency(CWL) = 7 (DDR3-1333)
8-bit pre-fetch
Burst Length: 8 (Interleave without any limit, sequential with starting address "000" only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
Bi-directional Differential Data Strobe
Internal(self) calibration: Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
On Die Termination using ODT pin
Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
Asynchronous Reset
PCB: Height 1.18" (30.00mm) single sided component

Specifications:
CL(IDD): 9 cycles
Row Cycle Time (tRCmin): 49.5ns (min.)
Refresh to Active/Refresh Command Time (tRFCmin): 260ns (min.)
Row Active Time (tRASmin): 36ns (min.)
Maximum Operating Power: 2.100 W* (per module)
UL Rating: 94 V - 0
Operating Temperature: 0 C to 85 C
Storage Temperature: -55 C to +100 C
