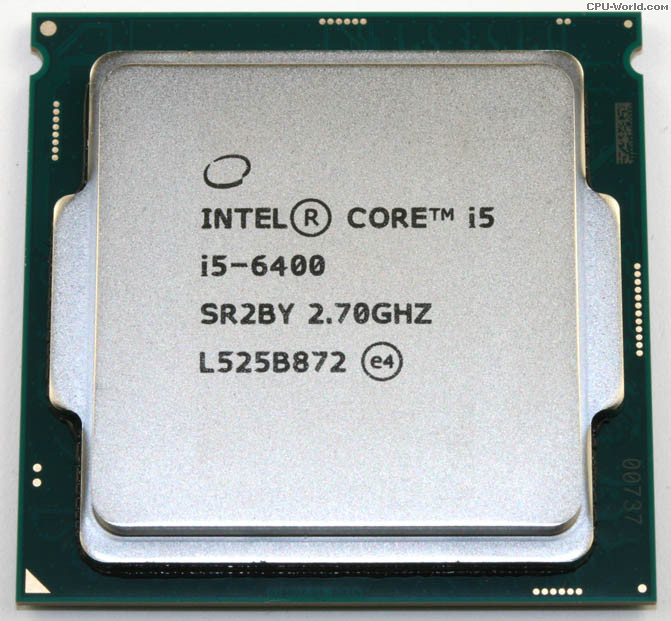

INTEL Core I5-6400 Processor

Specifications:
Essentials:
Processor Number: i5-6400
Lithography: 14 nm
Included Items: Thermal Solutions - E97379

Performance:
# of Cores: 4
# of Threads: 4
Processor Base Frequency: 2.70 GHz
Max Turbo Frequency: 3.30 GHz
Cache: 6 MB SmartCache
Bus Speed: 8 GT/s DMI3
TDP: 65 W

Supplemental Information:
Conflict Free: Yes

Memory Specifications:
Max Memory Size: 64 GB
Memory Types: DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels: 2
Max Memory Bandwidth: 34.1 GB/s

Graphics Specifications:
Processor Graphics: Intel HD Graphics 530
Graphics Base Frequency: 350.00 MHz
Graphics Max Dynamic Frequency: 950.00 MHz
Graphics Video Max Memory: 64 GB
Graphics Output: eDP/ DP/ HDMI/ DVI
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096x2304@24Hz
Max Resolution (DP): 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz
DirectX Support: 12
OpenGL Support: 4.4
Intel Quick Sync Video: Yes
Intel Wireless Display: Yes
Intel InTru 3D Technology: Yes
Intel Clear Video Technology: Yes
# of Displays Supported: 3

Expansion Options:
Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16/ 2x8/ 1x8+2x4
Max # of PCI Express Lanes: 16

Package Specifications:
Sockets Supported: FCLGA1151
Max CPU Configuration: 1
Thermall Solution Specification: PCG 2015c (65W)
Tcase: 71 degree celsius
Package Size: 37.5mm x 37.5mm

Advanced Technologies:
Intel Turbo Boost Technology: 2.0
Intel Hyper-Threading Technology: Yes
Intel Virtualization Technology for Directed I/O: Yes
Intel VT-x with Extended Page Tables: Yes
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technology: Yes
Intel Identity Protection Technology: Yes
Intel Small Businees Advantage: Yes

Security & Reliability:
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Software Guard Extentions: Yes
Intel Memory Protection Extensions (Intel MPX): Yes
OS Guard: Yes
Execute Disable Bit: Yes
Intel Device Protection with Boot Guard: Yes
