Specification

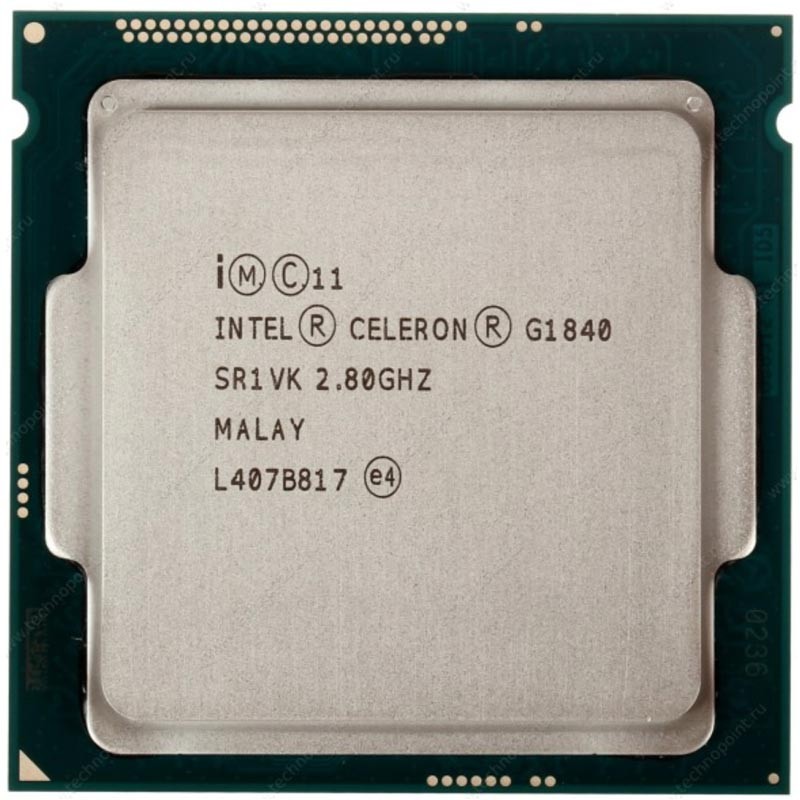

INTEL Celeron G1840 Processor
Specification:
Essentials:
Product Collection: Intel Celeron Processor G Series
Code Name: Products formerly Haswell
Vertical Segment: Desktop
Processor Number: G1840
Lithography: 22 nm
Performance:
# of Cores: 2
# of Threads: 2
Processor Base Frequency: 2.8 GHz
Cache: 2 MB
Bus Speed: 5 GT/s DMI2
TDP: 53 W
Supplemental Information:
Conflict Free: Yes
Memory Specifications:
Max Memory Size (dependent on memory type): 32 GB
Memory Types: DDR3 and DDR3L 1333 at 1.5V
Max # of Memory Channels: 2
Max Memory Bandwidth: 21.3 GB/s
ECC Memory Supported: Yes
Graphics Specifications:
Processor Graphics: Intel® HD Graphics
Graphics Base Frequency: 350 MHz
Graphics Max Dynamic Frequency: 1.05 GHz
Graphics Video Max Memory: 1.7 GB
Graphics Output: eDP/DP/HDMI/DVI/VGA
Max Resolution (HDMI 1.4): 1920x1080@60Hz
Max Resolution (DP): 2560x1600@60Hz
Max Resolution (eDP - Integrated Flat Panel): 2560x1600@60Hz
Max Resolution (VGA): 1920x1200@60Hz
DirectX Support: 11.1/12
OpenGL Support: 4.3
Intel Quick Sync Video: Yes
Intel Clear Video HD Technology: Yes
# of Displays Supported: 3
Expansion Options:
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16, 2x8, 1x8/2x4
Max # of PCI Express Lanes: 16
Package Specifications:
Sockets Supported: FCLGA1150
Max CPU Configuration: 1
TCASE: 72°C
Package Size: 37.5mm x 37.5mm
Graphics and IMC Lithography: 22nm
Advanced Technologies:
Intel Virtualization Technology (VT-x): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Security & Reliability:
Secure Key: Yes
Execute Disable Bit: Yes
