Specification

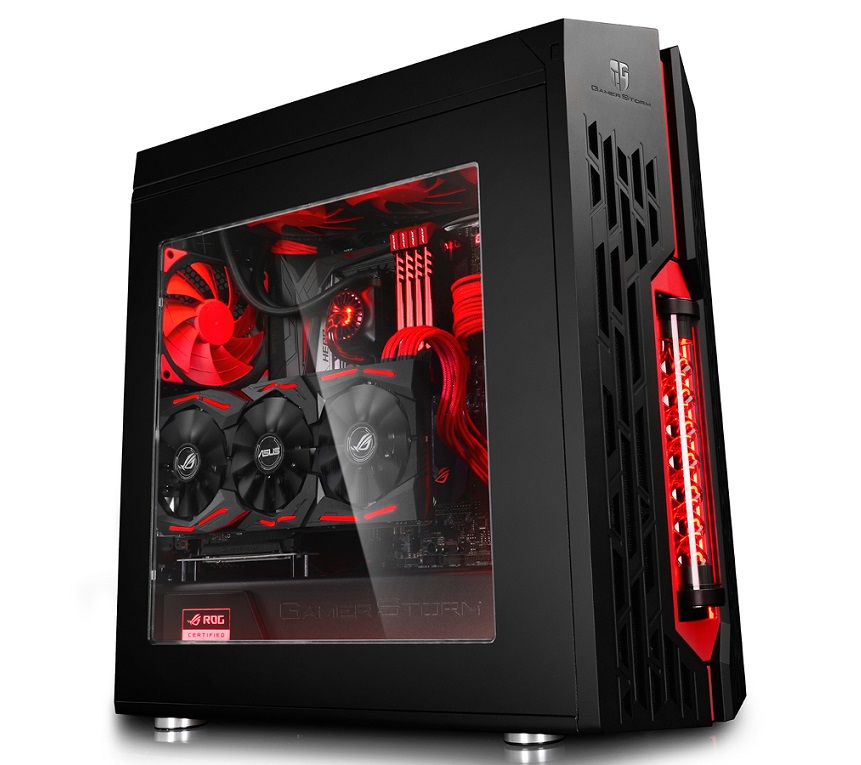

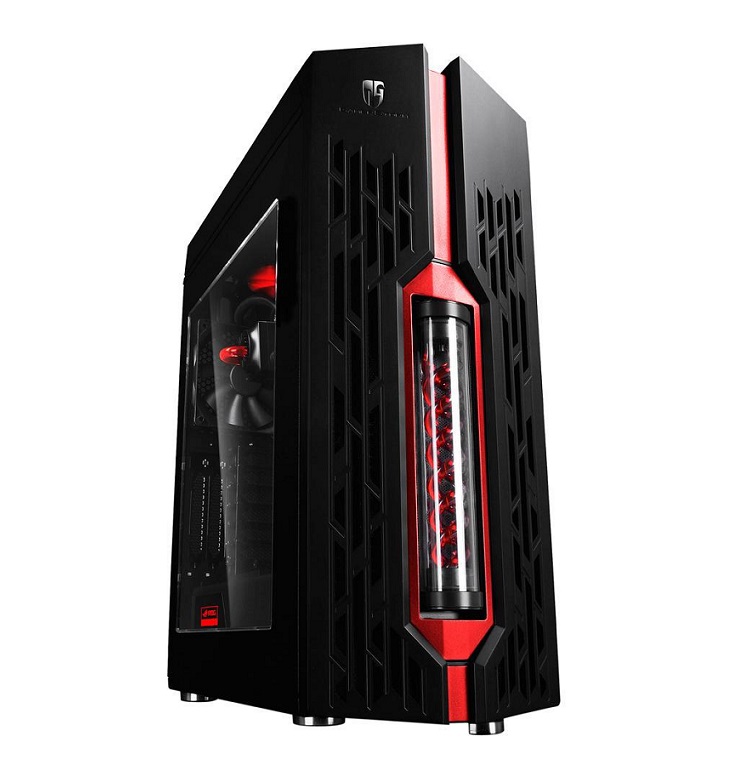

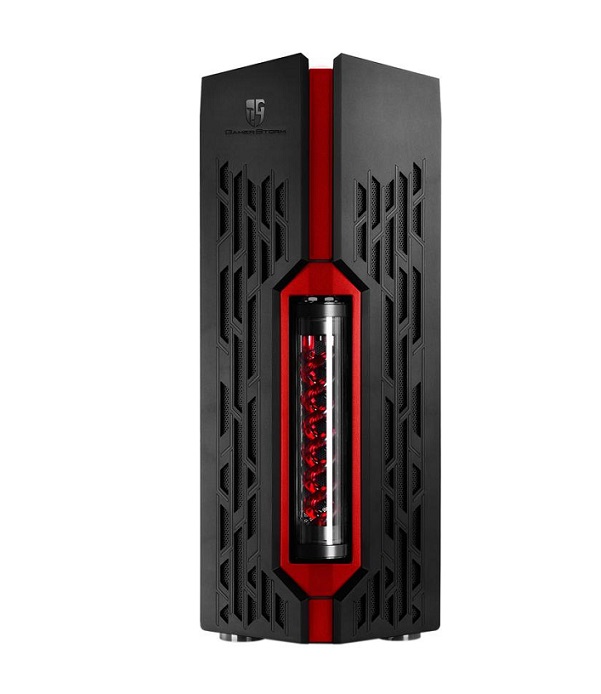

DEEPCOOL GENOME ROG ATX Case
Features:

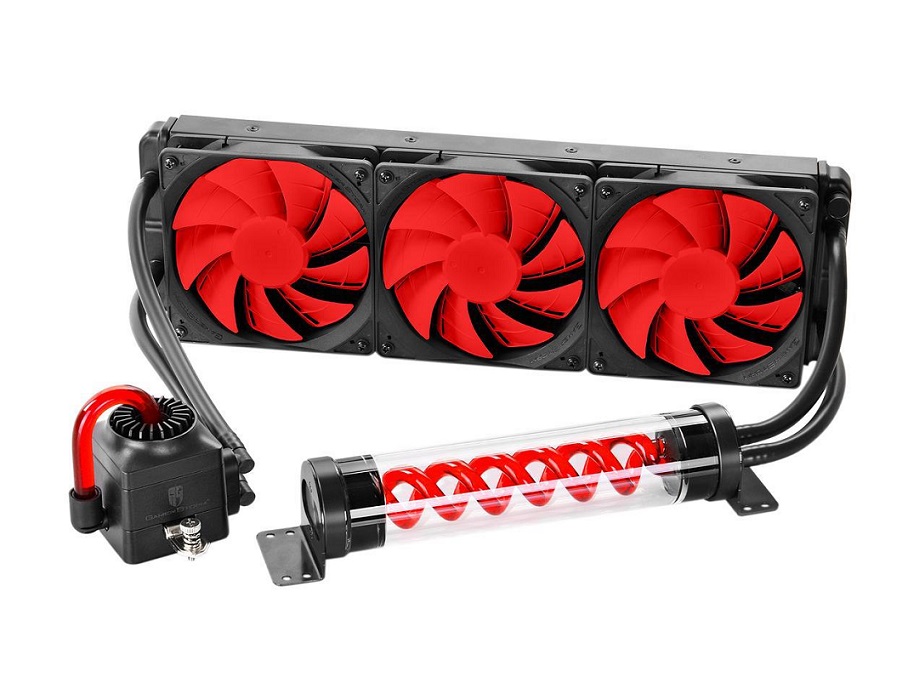

Optimized ATX chassis with an integrated 360mm radiator liquid cooling system
Certified by ROG with ROG exclusive features
Integrated remote-controlled RGB lighting system complete with an ROG logo, water block, reservoir and LED strips
1 extra Aura RGB Header to achieve instant control over system lighting
2 mounting positions for the 3.5" HDD cage to provide greater flexibility for PSU installation
Supports top-mounting of a 120/240/280/360mm radiator and front-mounting of a 120/240mm radiator and 200mm fan
Extra space reserved for DIY water cooling system
Optimized extra slot for vertical graphic card installation for enhanced stability (PCI-E extension cable included)
Wider opening on the MB tray to facilitate CPU cooler installation
2x USB3.0 *Enlarge side-window *Metallic logo on side panel
Optimized cable management
PSU rubber buffer and dust filter
Application For:
Intel Socket 150W
LGA-2011-V3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150
High End Desktop i7
Core i7 Extreme/i7/i5/i3
Pentium G
Celeron G
AMD Socket 220W
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class
Technical Specifications:
Motherboards: (MAX:305x275mm) ATX
Materials: SGCC+PLASTIC (ABS) (Panel thickness: 0.8mm)
Product Dimension (LxWxH): 506x210x505 mm
Net Weight: 9.77 kg
Gross Weight: 12.09 kg
Liquid Cooler Compatibilty: 120/240 at front; 120/240/280/360 mm at top
3.5" Drive Bays: 2
2.5" Drive Bays: 2
I/O Panel: 2xUSB3.0/ Audio(HD)x1/ Micx1
Expansion Slots: 7 (plus 2 extra slots for vertical VGA card installation)
Cooling Fans: Pre-installed: Rear: 1x120mm fan, Top: 360mm liquid cooling system, Optional: Front: 2x120mm/ 1x200mm fan
Power Supply Type: ATX PS2
VGA Compatibilty: 330mm
Carton Dimension: 575x285x600 mm
LED Strip: 350mm x 1 pc
Radiator Dimensions: 395x120x32mm
Fan Dimensions: 120x120x25mm(3PCS)
Fan Speed: 500±200-1800±10%RPM (4Pin)
Fan Air Flow: 229.56CFM (MAX)
Fan Noise Level: 17.6¬31.3dB(A)
Fan Bearing Level: Hydro Bearing
Fan Rated Voltage: 12VDC
Fan Rated Current: 0.18±10%A(MAX)
Fan Power Consumption: 2.16W
Pump Connector: 3Pin
Pump Operating Voltage: 6¬13.8VDC
Pump Rated Voltage: 12VDC
Pump Speed: 2200±10%RPM
Pump Load Current: 0.16±15%A
Pump Power Consumption: 1.92W
Net Weight: 2093±10g (liquid cooling system only)
