ZOTAC - ZT-ZBOXN-AQ01



ZOTAC ZBOX NANO, A4-5000, DDR3-1600 SUPP

Description

Embrace quad processor cores in a palm-sized form factor with the ZOTAC ZBOX nano AQ01 series. Powered by the latest high-performance AMD APU, the ZOTAC ZBOX nano AQ01 series ushers in a new era of palm sized computing.


Specification

Zotac ZBOXN-AQ01

Specification:
Product Name
Product Name: ZBOX nano AQ01

Chipset:
Manufacturer: AMD
Chipset: Integrated
GPU: AMD Radeon™ HD 8330

CPU Compatibility:
Name: AMD A4-5000 APU Platform (quad-core) (1.5 GHz)
Socket: NA (integrated CPU)
Frontside Bus: NA

Memory:
Memory Type: DDR3
Memory Speed: 1600 Mhz
Slots: 1 only
Capacity: Support 1 x 204-pin DDR3-1600 SODIMM (max up to 8GB)

Expansions:
Expansion Slots: na

3D API:
DirectX: DirectX 11.1
OpenGL OpenGL: 4.3

Networking:
Ethernet: 10/100/1000Mbps
WiFi: 802.11ac/n/g/b/a + Bluetooth 4.0

Audio:
Analog: Headphone jack Microphone jack
Digital: 8-ch via HDMI mini-Optical S/PDIF

Storage:
Hard Drive: 2.5"drive bay
Optical Drive: na
Memory Card Reader: 7-in-1 (MMC/SD/SDHC/SDXC/MS/MS Pro/xD)

Ports:
DVI: na
HDMI: 1 (HDCP, LPCM & bitstream ready)
DisplayPort: 1
SATA: SATA 6.0 Gb/s compatible
eSATA: NA
IDE: NA
PS2: NA
Serial Port: NA

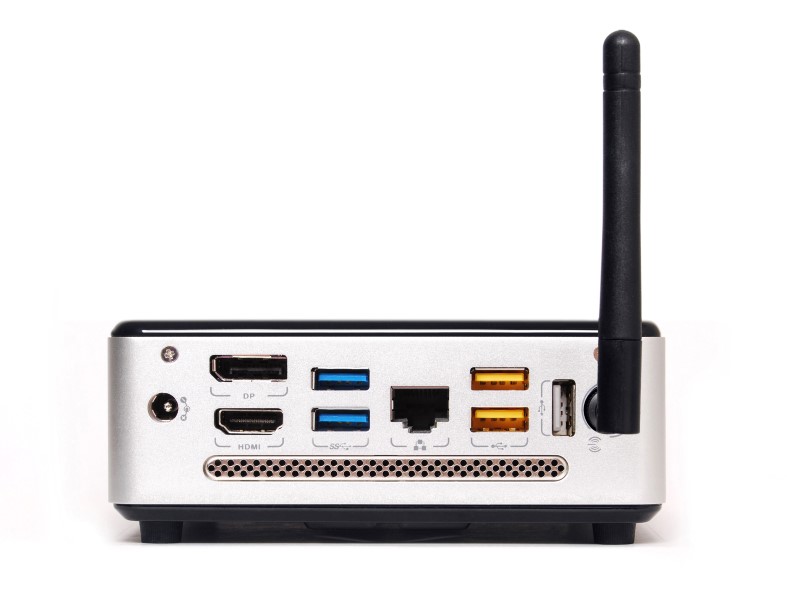

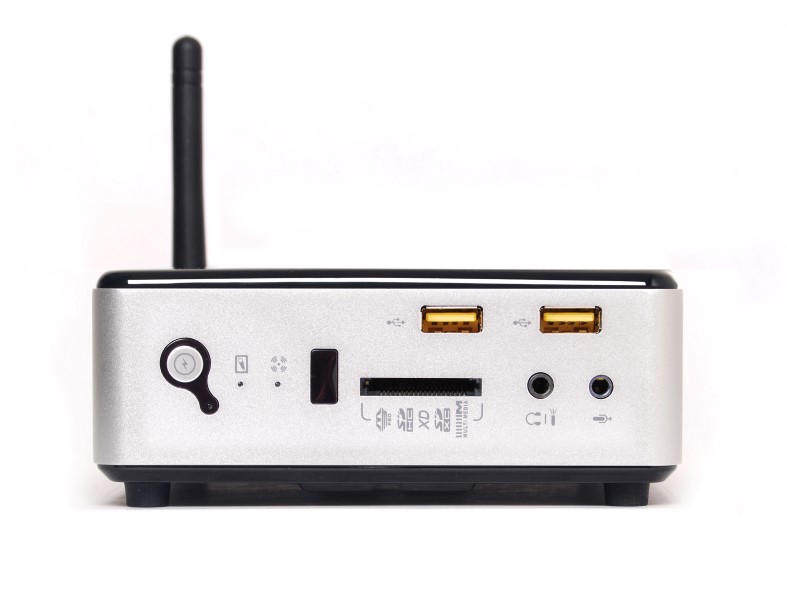

USB Ports: 2 USB 3.0 (on back panel) 5 USB 2.0 (2 in front 3 on back panel)

Cooler:
Cooler: Smartfan

Form Factor:
Form Factor: mini-PC

OS Compatibility:
Windows: User installed (Windows 7/8 ready)

General:
SLI Supported: NO
Maximum Resolution: NA

Other:
Graphics Output: 1 DisplayPort / 1 HDMI

Packaging:

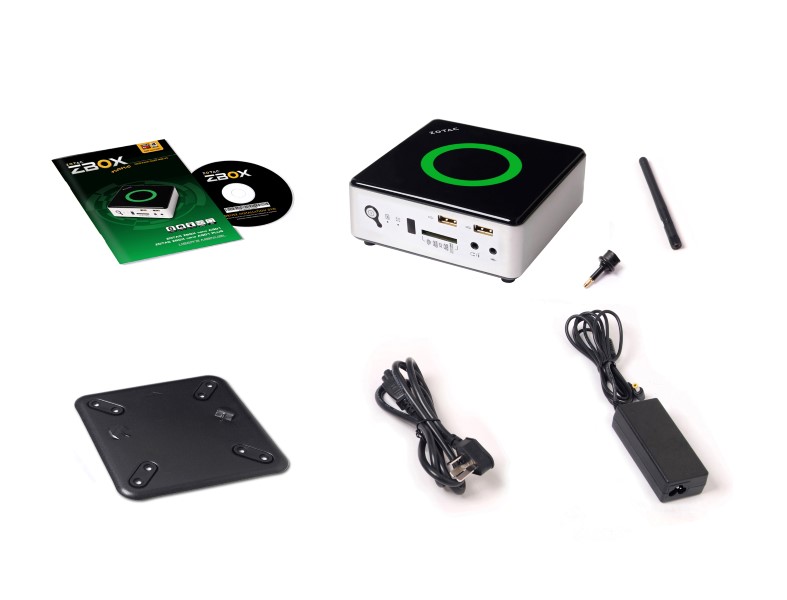

Content: 1 x ZOTAC ZBOX nano AQ01 1 x WiFi antenna 1 x mini-Optical to Optical adapter 1 x VESA mount 1 x AC adapter 1 x Power cord 1 x Warranty card 1 x User manual 1 x Driver DVD
