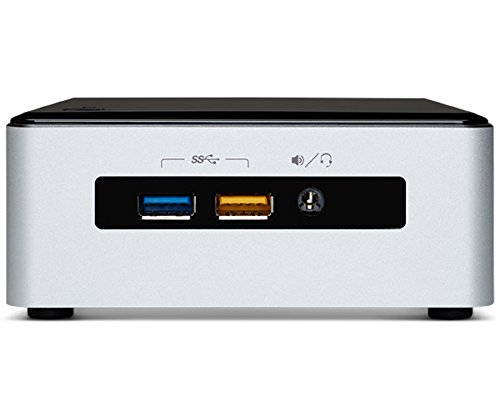

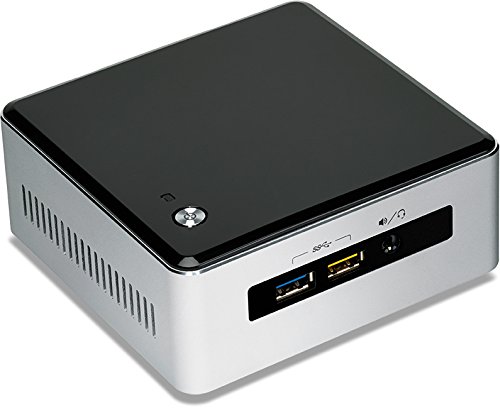

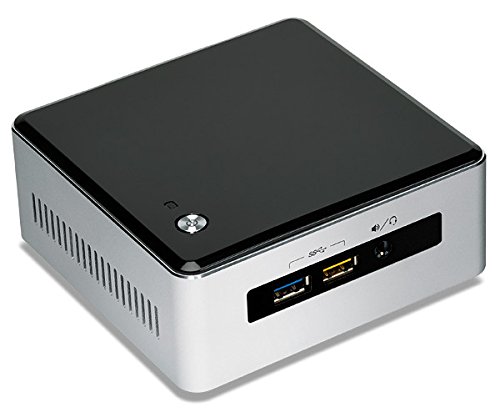

INTEL - NUC-I-5I7RYH



INTEL NUC I7-5557U W/ M.2 &2.5" SUPPORT

Description

Equipped with a 5th generation Intel Core i7-5557U processor, NUC5i7RYH is the highest performing Intel NUC ever, Iris graphics 6100 delivers amazing multimedia experience and makes NUC5i7RYH perfect for immersive gaming.


Specification

INTEL NUC Kit 5i7RYH

Equipped with a 5th generation Intel Core i7-5557U processor, NUC5iRYH is the highest performing Intel NUC ever
Iris graphics 6100 delivers amazing multimedia experiences and make NUC5iRYH perfect for immersive gaming
A replaceable lid provides plenty of options to extend system capabilities or add personal style
Intel Turbo Boost Technology 2.0 delivers performance that adapts to your needs
Add a 2.5inch HDD o an M.2 SSD for more storage
Complete with Wi-Fi 802.11ac wireless, Bluetooth, and 7.1 surround, NUC5i7RYH is ideal for home theater PCs, media server PCs, and home hubs

Processor: 5th generation Intel Core i7-5557U processor (3.1GHz up to 3.4GHz, Intel Turbo Boost Technology, dual-core, 4MB cache, 28W thermal design power (TDP)

Graphics:
Iris graphics 6100
1 x mini HDMI 1.4a
1 x mini DisplayPort 1.2

Audio:
Up to 7.1 surround audio via mini HDMI and mini DisplayPort
Headphone and microphone jack on the front panel

Peripheral connectivity:
2 x USB3.0 ports on the back panel
2 x USB3.0 ports on the front panel (1x charging capable)
2 x internal USB2.0 via header
Consumer infrated sensor on the front panel

Storage:
Internal support for M.2 SSD card (22x42, 22x60, or 22x80)
Internal SATA3 support for 2.5inch HDD/SSD (up to 9.5 mm thickness)

Networking:
Intel PRO 10/100/1000 Network Connection
Intel Wireless-AC 7265 M.2 soldered-down. wireless antennas (IEEE 802.11ac, Bluetooth*4, Intel Wireless Display)

Enclosure:
Silver with black top and diamond cut around the top
Aluminum and plastic, dimensions: 115 x 111 x 49mm

Power adapter:
19 V, 65 W wall-mount AC-DC power adapter
Multi-country plugs (IEC types A/C/G/I)
